P070 radio hi-fi amplifier

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Various consumers › P070 radio hi-fi amplifier

Connectors and pin-outsP070 radio hi-fi amplifier

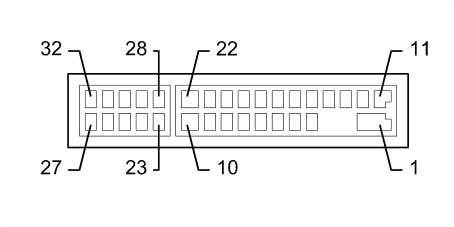

P070 RADIO HI-FI AMPLIFIER

Bose Hi-Fi system

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4,0	R		See B045 LUGGAGE COMPARTMENT JUNCTION UNIT (CVB)	2
2	4,0	N		See C056 AMPLIFIER EARTH
3	1,0	RN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	9
4	1.5	VN		See P030 LEFT REAR SPEAKER	2
5	1.5	HN		See P031 RIGHT REAR SPEAKER	1
6		M		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	15
7		AN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	3
8		NZ		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
9		LR		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	1
10		AR		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
11	1,5	V		See P049 REAR CENTRE WOOFER SPEAKER	2
12	1.5	BV		See P049 REAR CENTRE WOOFER SPEAKER	3
15	1,0	BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	10
16	1.5	R		See P030 LEFT REAR SPEAKER	1
17	1.5	H		See P031 RIGHT REAR SPEAKER	2
19		BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	4
20		BZ		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6
21		HL		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	2
22		HN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
25	1.5	S		See P049 REAR CENTRE WOOFER SPEAKER	4
26	1.5	C	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	13
				See D031 PASSENGER FRONT DOOR COUPLING	21
27	1.5	CB	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	14
				See D031 PASSENGER FRONT DOOR COUPLING	22
31	1.5	AN	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	12
				See D030 DRIVER'S FRONT DOOR COUPLING	22
32	1.5	A	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D030 DRIVER'S FRONT DOOR COUPLING	21

Bose Hi-Fi system, Right hand drive

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	4,0	R		See B045 LUGGAGE COMPARTMENT JUNCTION UNIT (CVB)	2
2	4,0	N		See C056 AMPLIFIER EARTH
3	1,0	RN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	9
4	1.5	VN		See P030 LEFT REAR SPEAKER	2
5	1.5	HN		See P031 RIGHT REAR SPEAKER	1
6		M		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	15
7		AN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	3
8		NZ		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	5
9		LR		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	1
10		AR		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	7
11	1,5	V		See P049 REAR CENTRE WOOFER SPEAKER	2
12	1.5	BV		See P049 REAR CENTRE WOOFER SPEAKER	3
15	1,0	BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	10
16	1.5	R		See P030 LEFT REAR SPEAKER	1
17	1.5	H		See P031 RIGHT REAR SPEAKER	2
19		BN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	4
20		BZ		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	6
21		HL		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	2
22		HN		See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	8
25	1.5	S		See P049 REAR CENTRE WOOFER SPEAKER	4
26	1.5	C	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	13
				See D030 DRIVER'S FRONT DOOR COUPLING	21
27	1.5	CB	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	14
				See D030 DRIVER'S FRONT DOOR COUPLING	22
31	1.5	AN	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	12
				See D031 PASSENGER FRONT DOOR COUPLING	22
32	1.5	A	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	11
				See D031 PASSENGER FRONT DOOR COUPLING	21
