P030 left rear speaker

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Various consumers › P030 left rear speaker

Connectors and pin-outsP030 left rear speaker

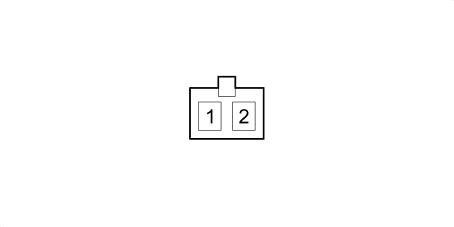

P030 LEFT REAR SPEAKER

Bose Hi-Fi system

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	R	X	See P070 RADIO HI-FI AMPLIFIER	16
2	1,5	VN	X	See P070 RADIO HI-FI AMPLIFIER	4

All versions

Wiring	Colour
See 25 REAR	BIANCO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1,5	R	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	2
2	1,5	VN	X	See D020B DASHBOARD/REAR COUPLING (DASHBOARD)	1
