STRIPPING TAILGATE

Operation 7205E56 · EXTERIOR PARTS

The operation should be carried out with the tailgate removed.

Op. 7015A05 TAILGATE LOWER INTERIOR PANEL-R R

Op. 7015A06 TAILGATE UPPER INTERIOR PANEL - R.R.

Op. 7015B10 SINGLE TAILGATE LOCK - R+R OR REPAIR WITH PANEL/PROTECTION REMOVED

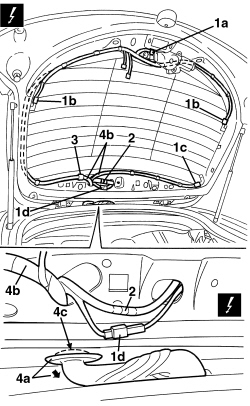

1. Disconnect the electrical connections (1a, 1b, 1c, 1d).

Description	Component
REAR WIPER MOTOR	See N016 REAR WINDOW WIPER MOTOR
HEATED REAR WINDSCREEN	See P055 HEATED REARSCREEN
ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)	See F040 ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT)

2. Disconnect the rearscreen washer fluid pipe.

3. Disconnect the wiring retainers.

4. Disconnect the duct seal (4a) and extract the wiring (4b) from the tailgate, passing it through the opening (4c).

Op. 5050C34 REAR WIPER ARM WITH BLADE - R+R

Op. 7055A83 BADGE ON TAILGATE - R.R

Op. 5050C42 REAR WIPER MOTOR - R+R

Op. 7015B12 TAILGATE SELF-ADJUSTING BUFFERS - R.R.

Op. 7210G76 REAR SPOILER - R.R.

Op. 7035B14 REAR WINDOW GLASS - R.R INCLUDES CLEANING HOUSING
