Rear spoiler - r.r.
- Make
- Alfa Romeo
- Model
- Brera and Spider Factory Service Manual
- Year
- 2005–2010
- Section
- Removing-refitting › Rear spoiler - r.r.
Body panels and frameRear spoiler - r.r.
REAR SPOILER - R.R.
Removing
Op. 7015A06 TAILGATE UPPER INTERIOR PANEL - R.R.
1. Undo the spoiler retaining nuts.
2. Disconnect the connection for the rearscreen washer fluid pipe.
3. Disconnect the electrical connection.
| Description | Component |
|---|---|
| ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT) | See F040 ADDITIONAL REAR LIGHT (THIRD BRAKE LIGHT) |
- Lower the tailgate.

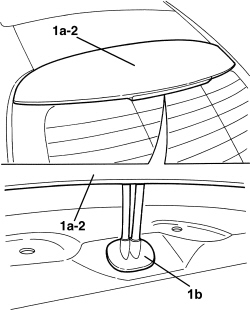

1. Lift the spoiler (1a) slightly and release the duct seal (1b).
2. Remove the spoiler and third brake light.
Refitting
- Check that the spoiler is not damaged.
- Position the spoiler attaching the duct seal.
- Raise the tailgate and connect the electrical connection.
- Connect the connection for the rearscreen washer fluid pipe.
- Tighten the spoiler retaining nuts.
