R.R. REAR BUMPER

Operation 7210E66 · EXTERNAL PARTS

Removing

- Position the vehicle on a lift.

- Remove both rear light clusters.

Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.

- Raise the vehicle.

1. Working on both sides of the vehicle, undo wheelarch fastening bolts (1a).

2. Move the wheel arch (2a) slightly and undo bolts (2b) fixing the bumper to the body.

1. Undo the lower bolts fixing the bumper.

- Lower the vehicle.

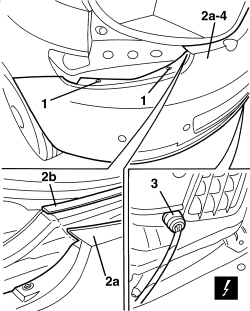

1. Working on both sides of the vehicle, undo the upper bumper fixing bolts.

2. Move bumpers (2a) slightly to one side, releasing from retainers (2b).

3. Disconnect the electrical connection.

4. Keep the rear bumper.

Refitting

- Check that the bumper is not damaged.

- Connect the electrical connection.

- Position the bumper and fit in its seat, doing up the retainers.

- Working on both sides of the vehicle, tighten the upper bumper bolts.

- Raise the vehicle.

- Tighten the lower bolts fixing the bumper.

- Working on both sides of the vehicle, tighten the side bolts securing the unit to the body and then the bolts securing the unit to the wheelarch.

Op. 5540A44 REAR LIGHT CLUSTER (ONE), LEFT OR RIGHT - R.R.

- Remove the vehicle from the lift.
