D212 bumper rear coupling

Make

Alfa Romeo

Model

Brera and Spider Factory Service Manual

Year

2005–2010

Section

Intermediate couplings › D212 bumper rear coupling

Connectors and pin-outsD212 bumper rear coupling

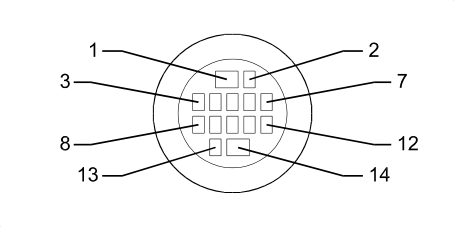

D212 BUMPER REAR COUPLING

Wiring	Colour
See 29 REAR BUMPER	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		NS	X	See K097H PARKING SENSORS (REAR BUMPER)	3
				See K097G PARKING SENSORS (REAR BUMPER)	3
				See K097F PARKING SENSORS (REAR BUMPER)	3
				See K097E PARKING SENSORS (REAR BUMPER)	3
3		CB		See K097G PARKING SENSORS (REAR BUMPER)	2
4		AL		See K097F PARKING SENSORS (REAR BUMPER)	2
5		AN		See K097H PARKING SENSORS (REAR BUMPER)	2
6		AV		See K097E PARKING SENSORS (REAR BUMPER)	2
7		CL	X	See K097H PARKING SENSORS (REAR BUMPER)	1
				See K097G PARKING SENSORS (REAR BUMPER)	1
				See K097F PARKING SENSORS (REAR BUMPER)	1
				See K097E PARKING SENSORS (REAR BUMPER)	1
11		AL		See F050 LEFT NUMBER PLATE LIGHT	1
12		CB		See F051 RIGHT NUMBER PLATE LIGHT	1
13		N	X	See F050 LEFT NUMBER PLATE LIGHT	2
				See F051 RIGHT NUMBER PLATE LIGHT	2

Wiring	Colour
See 25 REAR	NERO

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2		NS		See M084C PARKING SENSOR CONTROL UNIT (REAR)	1
3		CB		See M084C PARKING SENSOR CONTROL UNIT (REAR)	2
4		AL		See M084C PARKING SENSOR CONTROL UNIT (REAR)	3
5		AN		See M084C PARKING SENSOR CONTROL UNIT (REAR)	4
6		AV		See M084C PARKING SENSOR CONTROL UNIT (REAR)	5
7		CL		See M084C PARKING SENSOR CONTROL UNIT (REAR)	6
11		AL		See M001D BODY COMPUTER (REAR)	9
12		CB		See M001E BODY COMPUTER (REAR)	38
13		N		See C031 RIGHT REAR EARTH	1
