REAR SUSPENSION STABILIZER BAR - R+R

Operation 4420C10 · REAR SUSPENSION STABILIZER BAR/LINKS

1.8, 1.9 JTS, 2.2 JTS, 1.9 JTD 8V, 1.9 JTD 16V, 2.4 JTD 20V

Removing

- Position the vehicle on a lift.

Op. 4450B13 REAR WHEELS (TWO) - R.R

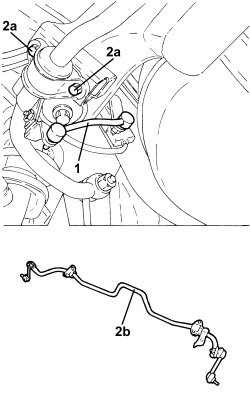

1. Undo the nuts (1a) and disconnect the rear suspension anti-roll bar joints (1b).

1. Undo the bolts (1a) and remove the rear suspension anti-roll bar (1b) by withdrawing from the wheel compartment.

Refitting

- Lubricate the damping rings on the stabiliser bar with silicone grease.

1. Position the stabiliser bar (1a) in its housing and secure it tightening the bolts (1b) to the recommended torque.

Take care to position the stabiliser bar correctly when installing.

1. Connect joints (1a) to the rear suspension stabiliser bar and secure by tightening nuts (1b) to the specified torque.

Op. 4450B13 REAR WHEELS (TWO) - R.R

- Remove the vehicle from the lift.

3.2 JTS

Removing
