CHECKS ON REAR STABILIZER BAR

Check 4420CA

- Position the vehicle on a two column lift.

- Raise the vehicle and check that the anti-roll bar is correctly positioned (transversely) in relation to the centre line.

- Check that the paint is not worn at the contact points between the bar and the crossmember.

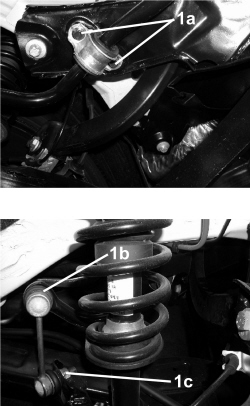

1. Using a torque wrench calibrated to the recommended value, check that the fastenings between the bar and the crossmember (1a) and between the bar and the connecting rod (1b) and between the connecting rod and the longitudinal rod (1c) are tightened to the torque indicated below.
