O041 PASSENGER SEAT HEATER

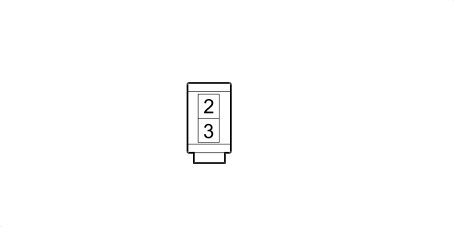

O041A – Right seat

Wiring	Colour
See 37 RIGHT SEAT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
2	1	RN		See O041B PASSENGER SEAT HEATER (RIGHT SEAT)	2
3	1	GN	X	See D071B PASSENGER SEAT COUPLING (REAR)	12
				See I066 PASSENGER SEAT HEATING SWITCH	5
				See O041B PASSENGER SEAT HEATER (RIGHT SEAT)	4
				See M110 FRONT PASSENGER SEAT HEATER CONTROL UNIT	4

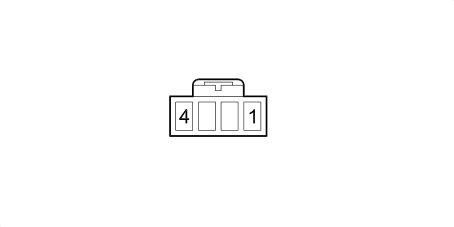

O041B – Right seat

Wiring	Colour
See 37 RIGHT SEAT

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	1	L		See M110 FRONT PASSENGER SEAT HEATER CONTROL UNIT	7
2	1	RN		See O041A PASSENGER SEAT HEATER (RIGHT SEAT)	2
3		R	X	See M110 FRONT PASSENGER SEAT HEATER CONTROL UNIT	6
				See I066 PASSENGER SEAT HEATING SWITCH	3
4		G	X	See D071B PASSENGER SEAT COUPLING (REAR)	12
				See I066 PASSENGER SEAT HEATING SWITCH	5
				See O041A PASSENGER SEAT HEATER (RIGHT SEAT)	3
				See M110 FRONT PASSENGER SEAT HEATER CONTROL UNIT	4
