REAR SEAT BACKREST - R.R

Operation 7050A19 · REAR SEAT ASSEMBLY

Removing

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

For the left and right sides.

Op. 7040L44 REAR DOOR RUNNING BOARD (ONE), LEFT OR RIGHT - R.R.

- Open the boot lid.

1. Release the retaining buttons using the special tool.

2. Move the two side ends of the rear trim slightly.

3. Undo the upper nuts fixing the rear seat backrest.

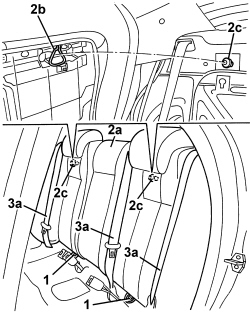

1. Working from inside the vehicle, undo the lower bolts fixing the backrest.

2. Raise the backrest (2a) and release the brackets (2b) from the attachment pins (2c).

3. Remove the backrest (2a) releasing it from the seat belts (3a).

Refitting

- Check that the rear seat backrest is not damaged.

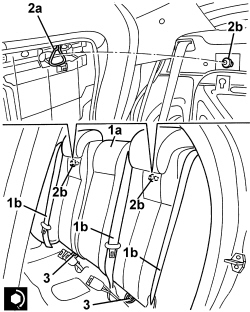

1. Place the rear seat backrest (1a) in position passing it under the rear seat belts (1b).

2. Lower the backrest attaching the brackets (2a) to the attachment pins (2b).

3. Tighten the lower backrest fixing bolts.

1. Tighten the upper backrest fixing nuts.

2. Place the two side ends (2a) of the luggage compartment rear trim in position and attach the retaining buttons (2b).

- Close the boot lid.
