ORNAMENT ON BOOT LID - R R

Operation 7055A81 · EXTERIOR MOULDINGS

Removing

Op. 7025B18 BOOT LID LINING - R+R

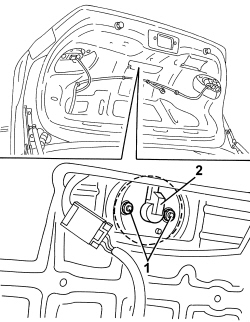

1. Undo the badge retaining nuts.

2. Working from outside the boot compartment, remove the badge.

Refitting

- Check that the badge is not damaged.

- Position the badge.

- Tighten the nuts.

Op. 7025B18 BOOT LID LINING - R+R
