Boot lid lock striker - r+r
- Make
- Alfa Romeo
- Model
- 159 Factory Service Manual
- Year
- 2005–2011
- Section
- Compartment covers › Boot lid lock striker - r+r
Body fittingsBoot lid lock striker - r+r

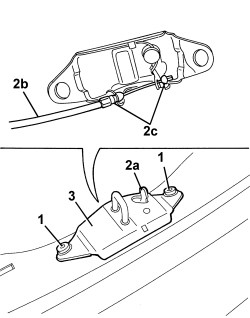

BOOT LID LOCK STRIKER - R+R
Removing
Op. 7025B66 BOOT COMPARTMENT SEAL - R+R
Op. 7040B22 LUGGAGE COMPARTMENT/LOAD PLATFORM MOULDING - R+R
1. Undo the bolts.
2. Move the striker (2a) and disconnect the emergency opening rod (2b) releasing the retainers (2c).
3. Keep the striker.
Refitting
- Check that the striker is not damaged.
- Connect the emergency opening rod to the striker attaching the retainers.
1. Place the striker in position and screw in the bolts without tightening them.
2. Adjust the position of the striker (2a); the arrows show the possible movements.
3. Tighten the bolts.
| Component | Fastening | dia | Value (daNm) | Validity |
|---|---|---|---|---|
| BOOT LID LOCK | Bolt | M6x16 | 0.7 ÷ 1.1 |
Op. 7040B22 LUGGAGE COMPARTMENT/LOAD PLATFORM MOULDING - R+R
