BOOT LID EMERGENCY OPENING CONTROL - R.R.

Operation 7025B34 · BOOT LID

Removing

Op. 7040B20 BACK TRIM FOR LUGGAGE COMPARTMENT/LOAD PLATFORM - ARRANGE

Op. 7040B10 LOAD PLATFORM (LUGGAGE PLATFORM) TRIM - R+R

Op. 7025B66 BOOT COMPARTMENT SEAL - R+R

Op. 7040B22 LUGGAGE COMPARTMENT/LOAD PLATFORM MOULDING - R+R

Op. 7040B18 LOAD COMPARTMENT LOAD PLATFORM SIDE TRIM ONE LH OR RH - R.R

- Raise the rear seat left cushion.

- Or, alternatively

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.

1. Undo the boot lid lock striker bolts.

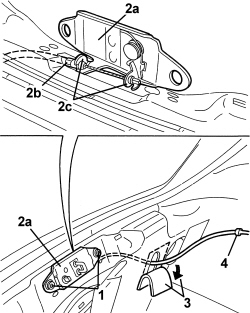

2. Move the striker (2a) and disconnect the emergency opening rod (2b) releasing the retainers (2c).

3. Partly detach the adhesive protection to release the emergency control.

4. Disconnect the emergency control from the intermediate retainers.

1. working in the area of the rear seat left cushion, disconnect emergency control (1a) from retainer (1b) and recover.

Refitting

- Check that the emergency control is not damaged.

- Place the emergency cover in position.

- Working in area of the rear seat left cushion, connect the emergency control to the retainer.

- Connect the emergency control to the intermediate retainers.

- Position and bond the adhesive protection securing the emergency control.

- Connect the emergency control to the boot lock striker retainers.

- Position the boot lock striker and screw in the fixing bolts without tightening them.

Op. 7040B18 LOAD COMPARTMENT LOAD PLATFORM SIDE TRIM ONE LH OR RH - R.R

Op. 7040B22 LUGGAGE COMPARTMENT/LOAD PLATFORM MOULDING - R+R

Op. 7025B66 BOOT COMPARTMENT SEAL - R+R

Op. 7040B10 LOAD PLATFORM (LUGGAGE PLATFORM) TRIM - R+R

Op. 7040B20 BACK TRIM FOR LUGGAGE COMPARTMENT/LOAD PLATFORM - ARRANGE

Op. 7025B10 BOOT LID - SQUARE

- Check the operation of the boot emergency opening control

- Lower the rear seat left cushion.

- Or, alternatively

Op. 7050A20 ONE-PIECE REAR SEAT CUSHION - R.R.
