Alfa Romeo 156 Factory Service Manual (1997-2002)14 · Connectors and pin-outs
14 · General

D76 TELEPASS connection

Make
Alfa Romeo
Model
156 Factory Service Manual
Year
1997–2002
Section
Intermediate junctions › D76 TELEPASS connection
Connectors and pin-outsD76 TELEPASS connection

D76 TELEPASS connection

Connector D76 – rear harness (white)

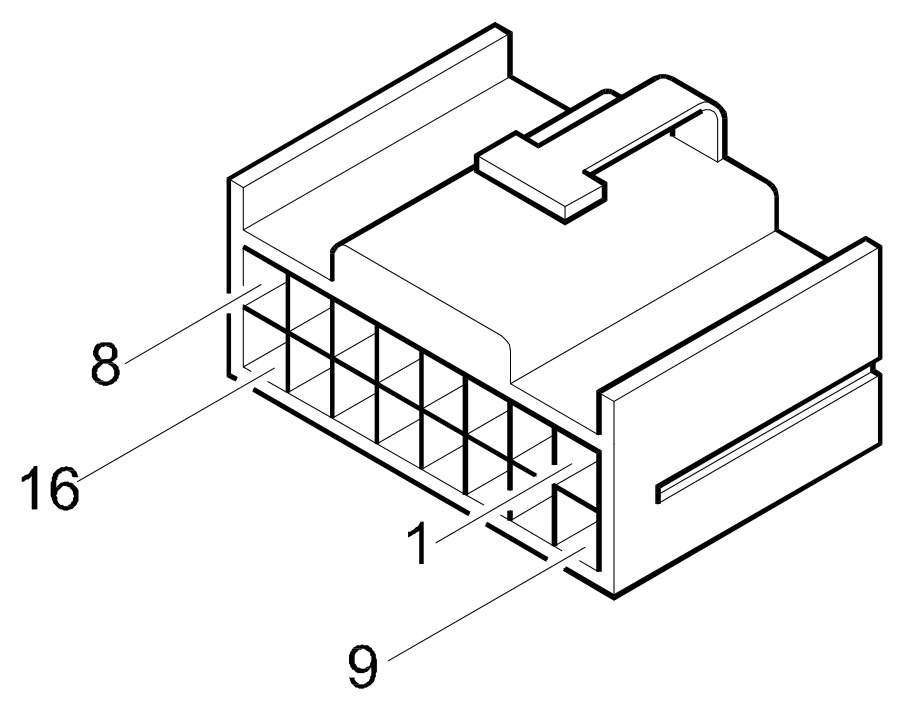

Connector D76, TELEPASS connection
Pinmm²ColourTo
1RredM35 pin 7
M40B pin 7
D75 pin 6
B1E pin 11
G32 pin 2
