D75 Radio 'phone junction

Make

Alfa Romeo

Model

156 Factory Service Manual

Year

1997–2002

Section

Intermediate junctions › D75 Radio 'phone junction

Connectors and pin-outsD75 Radio 'phone junction

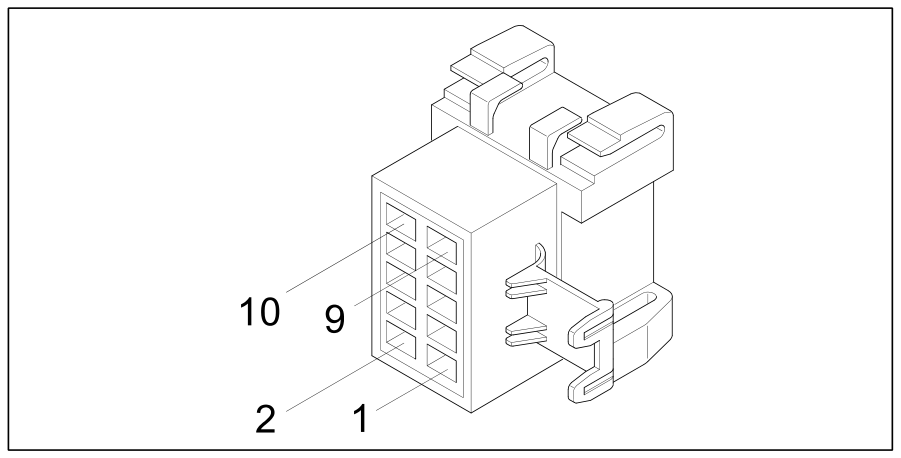

D75 Radio 'phone junction

Connector D75 – rear harness (white) – Euro3

Pin	mm²	Colour		To
1	1.0	SB	pink/white	D20 pin 7
5	1.0	N	black	C20B pin @
6	1.0	RG	red/yellow	B1G pin 11 G10 pin 2
7	1.0	G	yellow	D20 pin 4 H30 pin 1
8	1.0	RV	red/green	M35 pin 7 D76 pin 1 M40B pin 7 B1E pin 11 G32 pin 2
9	1.0	NB	black/white	D31 pin 8
10	1.0	RB	red/white	D31 pin 10

Connector D75 – rear harness (white)

Pin	mm²	Colour		To
1	1.0	SB	pink/white	D20 pin 7
5	1.0	N	black	C20B pin @
6	1.0	RG	red/yellow	B1G pin 11 G10 pin 2
7	1.0	G	yellow	D20 pin 4 H30 pin 1
8	1.0	RV	red/green	M35 pin 7 D76 pin 1 M40B pin 7 B1E pin 11 G32 pin 2
9	1.0	NB	black/white	D31 pin 9
10	1.0	RB	red/white	D31 pin 10

Connector D75 – rear harness (white) – RH drive adaptation

Pin	mm²	Colour		To
1	1.0	SB	pink/white	D20 pin 7
5	1.0	N	black	C20B pin @
6	1.0	RG	red/yellow	B1G pin 11 G10 pin 2
7	1.0	G	yellow	D20 pin 4 H30 pin 1
8	1.0	RV	red/green	M35 pin 7 D76 pin 1 M40B pin 7 B1E pin 11 G32 pin 2
9	1.0	NB	black/white	D30 pin 9
10	1.0	RB	red/white	D30 pin 10

Wiring diagrams

• E3580
