D61 Pretensioner connection

Make: Alfa Romeo
Model: 156 Factory Service Manual
Year: 1997–2002
Section: Intermediate junctions › D61 Pretensioner connection

‹ Prev D60 Air Bag connection Next › D70 Left seat connection

Connectors and pin-outsD61 Pretensioner connection

D61 Pretensioner connection

Connector D61A – air bag harness (yellow)

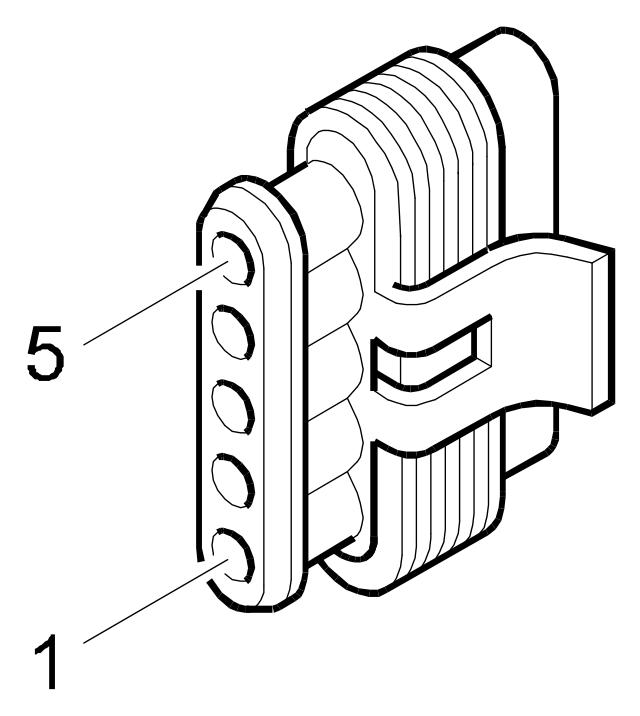

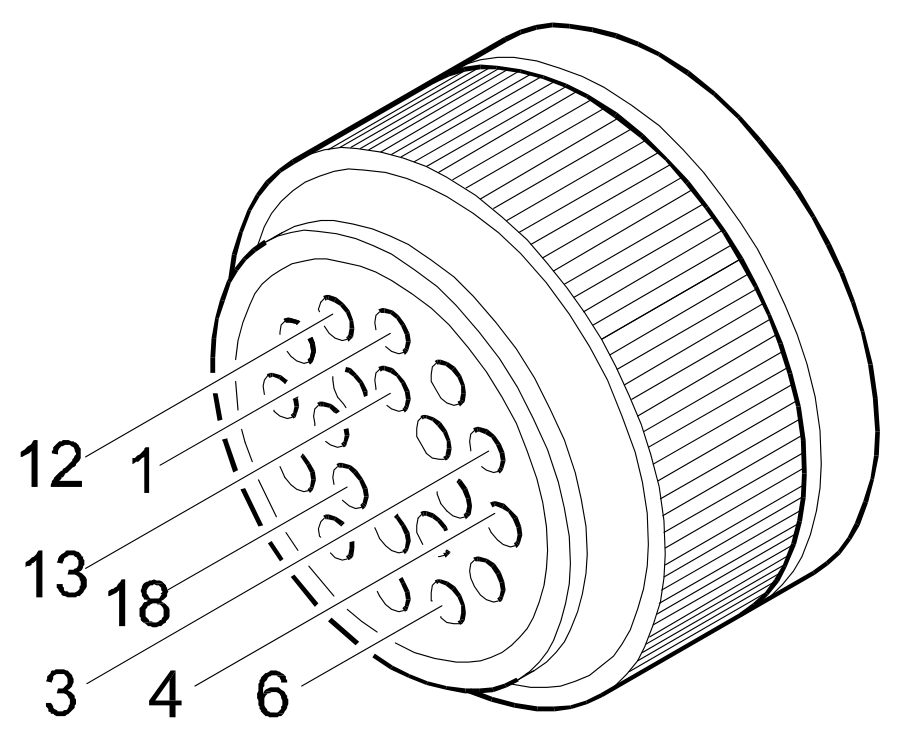

Connector D61A, Pretensioner connection

Pin	mm²	Colour		To
1		V	green	M60 pin 10
2		VN	green/black	M60 pin 11

Connector D61A – pretensioners harness (yellow)

Connector D61A, Pretensioner connection

Pin	mm²	Colour		To
1		V	green	Q20 pin 1
2		VN	green/black	Q20 pin 2

Connector D61B – air bag harness (yellow)

Connector D61B, Pretensioner connection

Pin	mm²	Colour		To
1		M	brown	M60 pin 6
2		MN	brown/black	M60 pin 7

Connector D61B – air bag harness (yellow) – Front Air BagSide

Connector D61B, Pretensioner connection

Pin	mm²	Colour		To
1		M	brown	M60 pin 3
2		MN	brown/black	M60 pin 4

Connector D61B – pretensioners harness (yellow)

Connector D61B, Pretensioner connection

Pin	mm²	Colour		To
1		M	brown	Q21 pin 1
2		MN	brown/black	Q21 pin 2

Connector D61C – air bag harness (white)

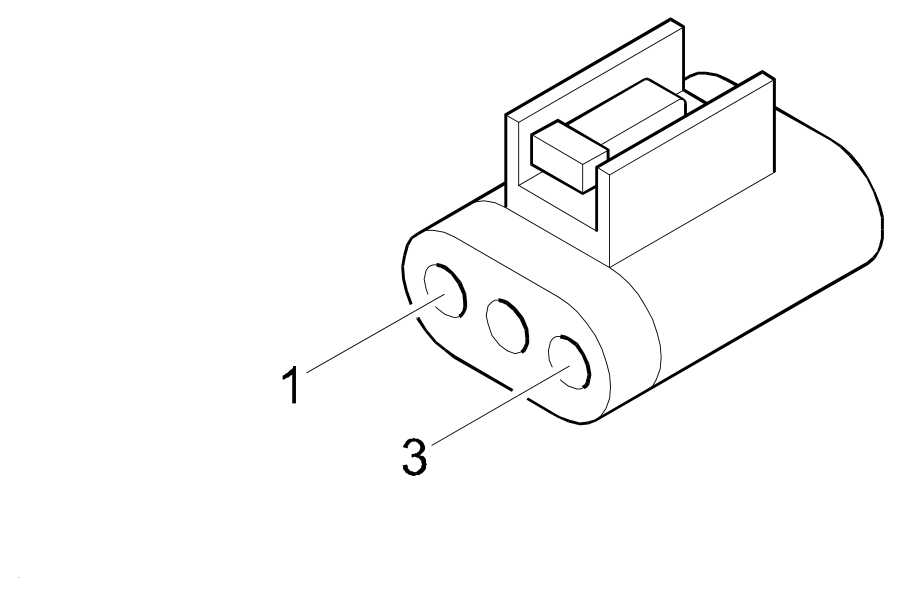

Connector D61C, Pretensioner connection

Pin	mm²	Colour		To
1		BV	white/green	M60 pin 23
3		BN	white/black	M60 pin 27

Connector D61C – air bag harness (white) – Front Air BagSide

Connector D61C, Pretensioner connection

Pin	mm²	Colour		To
1		RN	red/black	M60 pin 22
2		RV	red/green	M60 pin 23
3		ZB	violet/white	M60 pin 24
4		ZN	violet/black	M60 pin 25
5		BN	white/black	M60 pin 15
6		BV	white/green	M60 pin 37
7		N	black	C50
8		N	black	C50

Connector D61C – pretensioners harness (white)

Connector D61C, Pretensioner connection

Pin	mm²	Colour		To
1		BN	white/black	K65 pin 2
3		AB	light blue/white	K65 pin 1

Connector D61C – pretensioners harness (white) – Front Air BagSide

Connector D61C, Pretensioner connection

Pin	mm²	Colour		To
1		RN	red/black	K66 pin A
2		RV	red/green	K67 pin B
3		ZB	violet/white	K66 pin B
4		ZN	violet/black	K67 pin A
5		BN	white/black	K65 pin 1
6		BV	white/green	K65 pin 2
7		N	black	Q31 pin 3
8		N	black	Q30 pin 3

Connector D61D – air bag harness (yellow) – Front Air BagSide

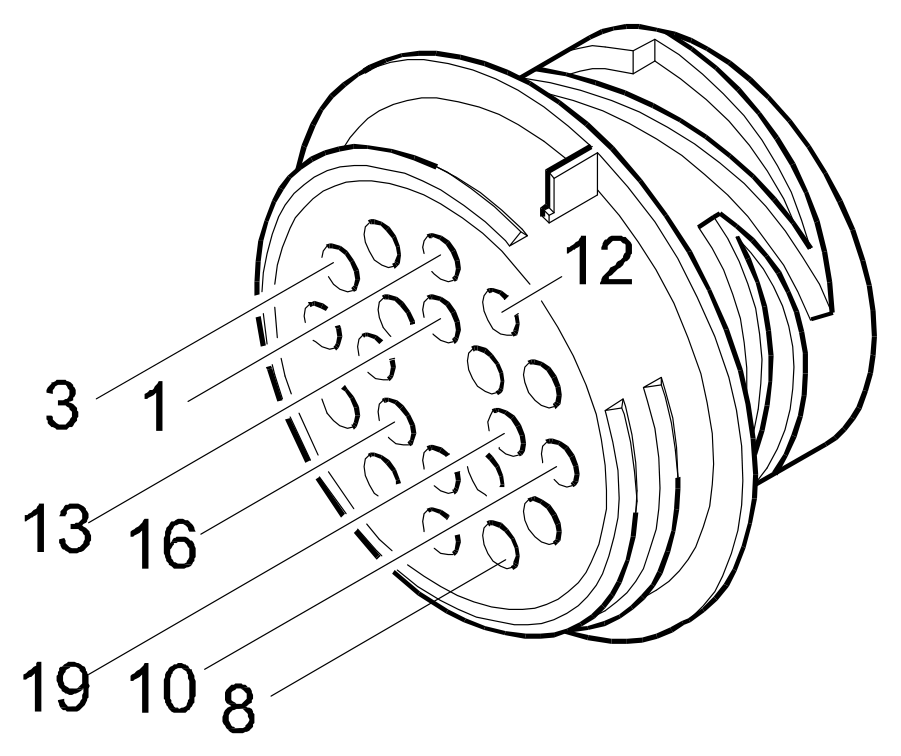

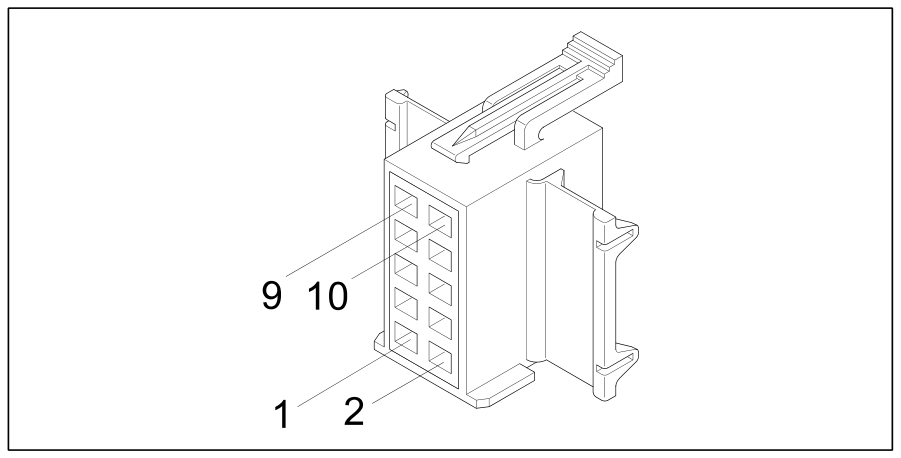

Connector D61D, Pretensioner connection

Pin	mm²	Colour		To
1		HN	grey/black	M60 pin 17
2		HL	grey/blue	M60 pin 16

Connector D61D – pretensioners harness (yellow) – Front Air BagSide

Connector D61D, Pretensioner connection

Pin	mm²	Colour		To
1		HN	grey/black	Q30 pin 2
2		HL	grey/blue	Q30 pin 1

Connector D61E – air bag harness (blue) – Front Air BagSide

Connector D61E, Pretensioner connection

Pin	mm²	Colour		To
1		HG	grey/yellow	M60 pin 18
2		HN	grey/black	M60 pin 19

Connector D61E – pretensioners harness (blue) – Front Air BagSide

Connector D61E, Pretensioner connection

Pin	mm²	Colour		To
1		HG	grey/yellow	Q31 pin 2
2		HN	grey/black	Q31 pin 1

Connector D61 – pretensioners harness (yellow) – Head-Bag

Connector D61, Pretensioner connection

Pin	mm²	Colour		To
1		N	black	Q30 pin 3
3		N	black	Q31 pin 3

Connector D61 – air bag harness (yellow) – Head-Bag

Connector D61, Pretensioner connection

Pin	mm²	Colour		To
1		N	black	C50
3		N	black	C50

Wiring diagrams

E7030
