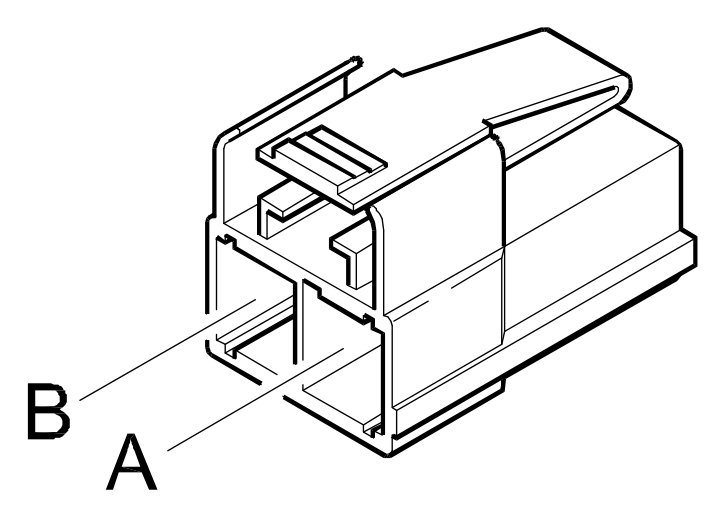

Q30 Driver's Side Bag

Connector Q30 – pretensioners harness (yellow) – Front Air BagSide

Pin	mm²	Colour		To
1		HL	grey/blue	D61D pin 2
2		HN	grey/black	D61D pin 1
3		N	black	D61C pin 8

Connector Q30 – pretensioners harness (yellow) – Head-Bag

Pin	mm²	Colour		To
1		HL	grey/blue	M60B pin 18
2		HB	grey/white	M60B pin 17
3		N	black	D61 pin 1

Wiring diagrams

• E7030
