D40 Rear / boot connection
- Make
- Alfa Romeo
- Model
- 156 Factory Service Manual
- Year
- 1997–2002
- Section
- Intermediate junctions › D40 Rear / boot connection
Connectors and pin-outsD40 Rear / boot connection
D40 Rear / boot connection

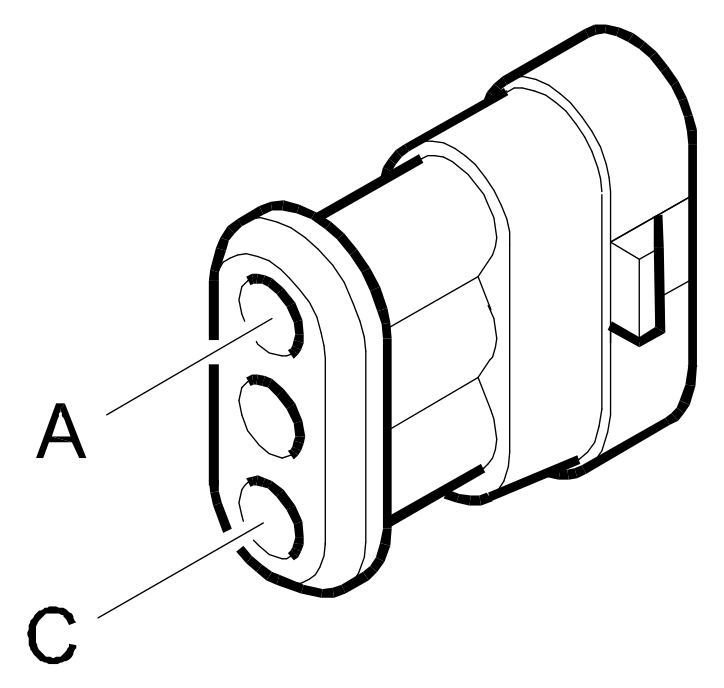

Connector D40 – boot harness (white) – from 01/00
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | B | white | B1G pin 7 |
| 2 | 1.0 | BN | white/black | B1G pin 6 |
| 3 | 1.0 | H | grey | D6A pin A8 |
| 4 | 1.0 | R | red | D20 pin 38 D6A pin C7 G40 pin 2 |
| 5 | 1.0 | N | black | C30 pin @ |
| 6 | 1.0 | N | black | C30 pin @ |
| 7 | 1.0 | N | black | C30 pin @ |
| 8 | 1.0 | MB | brown/white | D6A pin B1 |

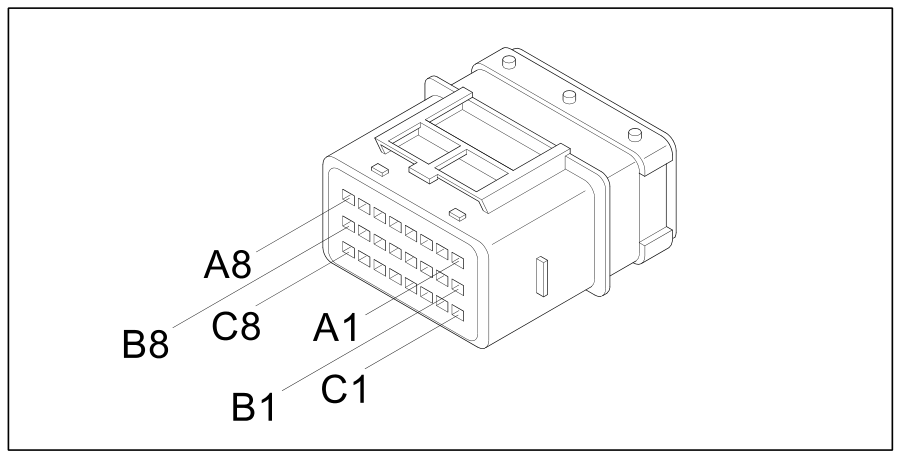

Connector D40 – rear harness (white)
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | B | white | F36 pin 2 |
| 2 | 1.0 | BN | white/black | F35 pin 2 |
| 3 | 1.0 | H | grey | F36 pin 3 |
| 4 | 1.0 | HB | grey/white | I11 pin 1 |
| 5 | 1.0 | N | black | F35 pin 1 |
| 6 | 1.0 | N | black | F36 pin 1 |
| 7 | 1.0 | N | black | I11 pin 3 |
| 8 | 1.0 | HN | grey/black | F35 pin 3 |
Connector D40 – boot harness (white) – up to 01/00
| Pin | mm² | Colour | To | |
|---|---|---|---|---|
| 1 | 1.0 | B | white | B1G pin 7 |
| 2 | 1.0 | BN | white/black | B1G pin 6 |
| 3 | 1.0 | H | grey | D6A pin 7 |
| 4 | 1.0 | R | red | D20 pin 38 D6A pin 20 G40 pin 2 |
| 5 | 1.0 | N | black | C30 pin @ |
| 6 | 1.0 | N | black | C30 pin @ |
| 7 | 1.0 | N | black | C30 pin @ |
| 8 | 1.0 | MB | brown/white | D6A pin 8 |
