Connectors and pin-outsP70 Bose radio amplifier

P70 Bose radio amplifier

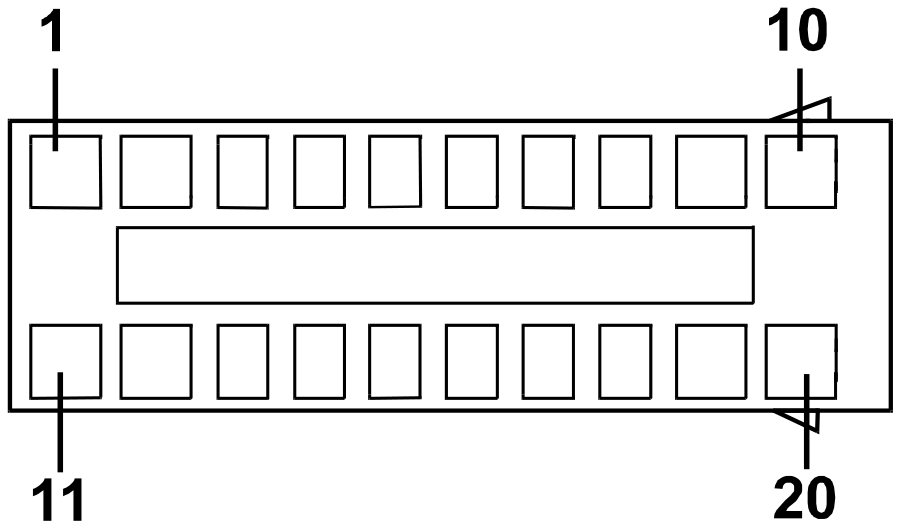

Connector P70 – cd multi-player harness

Pin	mm²	Colour		To
1	1.5	HG	grey/yellow	P49 pin 3
2	1.5	BL	white/blue	P49 pin 4
3		BN	white/black	D68A pin 2
4		NZ	black/violet	D68A pin 8
5		CB	orange/white	D68A pin 4
6		AR	light blue/red	D68A pin 6
7		AG	light blue/yellow	D68A pin 5
8		CN	orange/black	D68A pin 3
9		SN	pink/black	D68A pin 7
10		RN	red/black	D68A pin 1
11	2.5	NZ	black/violet	C65 P70 pin 24
12	2.5	R	red	D68C pin 1
13	2.5	RG	red/yellow	D68C pin 2
14	1.5	HV	grey/green	P49 pin 1
15	1.5	HL	grey/blue	P49 pin 2
16	1.5	BN	white/black	D68B pin 2
17	1.5	RN	red/black	D68B pin 1
18	1.5	SN	pink/black	D68B pin 7
19	1.5	NZ	black/violet	D68B pin 8
20	1.5	CN	orange/black	D68B pin 3
21	1.5	CV	orange/green	D68B pin 4
22	1.5	AG	light blue/yellow	D68B pin 5
23	1.5	AR	light blue/red	D68B pin 6
24	2.5	NZ	black/violet	C65 P70 pin 11
25	1.0	H	grey	D68A pin 9

Wiring diagrams

• E3510
