Connectors and pin-outsP49 Bose system coupling

P49 Bose system coupling

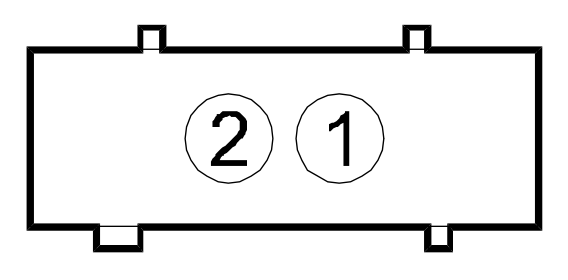

Connector P49 – cd multi-player harness (brown)

Pin	mm²	Colour		To
1	1.5	HV	grey/green	P70 pin 14
2	1.5	HL	grey/blue	P70 pin 15
3	1.5	HG	grey/yellow	P70 pin 1
4	1.5	BL	white/blue	P70 pin 2

Wiring diagrams

• E3510
