C30 Left rear earth

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Ground › C30 Left rear earth

Connectors and pin-outsC30 Left rear earth

C30 Left rear earth

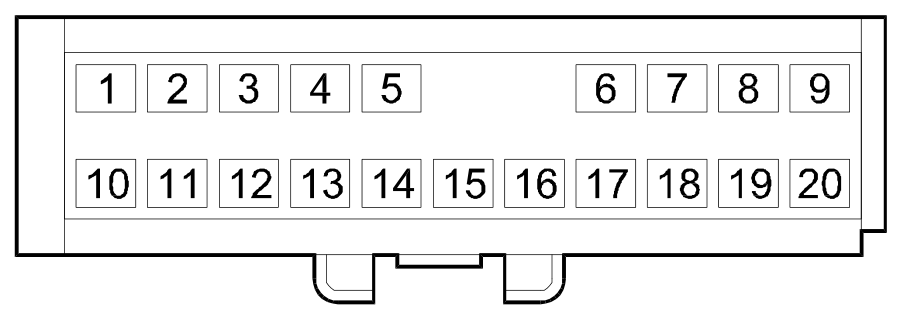

Connector C30 – rear harness (black)

Pin	mm²	Colour		To
1		NZ	black/violet	F36 pin 2
2		NZ	black/violet	I11 pin 2
3		N	black	F35 pin 2
5		NV	black/green	N16 pin 2
6		NZ	black/violet	F50 pin 2
8	1.5	NL	black/blue	N57 pin 2
11		NZ	black/violet	G20 pin 3
12		N	black	F40 pin 2
14		N	black	F30 pin 1
15		NZ	black/violet	J56 pin 3
16		N	black	Q40 pin 3
17		NZ	black/violet	F51 pin 2

Wiring diagrams

• E1020
• E2010
• E2020
• E2021
• E2022
• E2031
• E2510
• E2520
• E2521
• E3046
• E7015
• E7030
