Tailgate hinges - repair or replace with tailgate removed

Make

Alfa Romeo

Model

147 Factory Service Manual

Year

2000–2002

Section

Tailgate/flap › Tailgate hinges - repair or replace with tailgate removed

BodyTailgate hinges - repair or replace with tailgate removed

Tailgate hinges - repair or replace with tailgate removed

Operation 7015A24 · Tailgate assembly

Removal

See Op. 7040L40 Front compartment scuff strip - r r

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040H42 Rear pillar trim - r r (left and right sides)

See Op. 7065C30 Interior l/h or r/h grab handle (one) - r+r (rear)

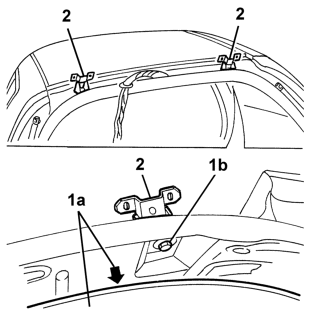

1 Slightly lower the ceiling trim 1a and undo the hinge bolts 1b.

2 Remove the hinges.

Refitting

Check that the hinges are undamaged.

Fit the hinges and screw in the bolts without tightening them.

With tailgate fitted See Op. 7015A14 Tailgate - adjust centring and profile - includes hinge and compartment seal adaptation

See Op. 7065C30 Interior l/h or r/h grab handle (one) - r+r (rear)

See Op. 7040H42 Rear pillar trim - r r (left and right sides)

See Op. 7050A22 Rear seat cushion - r+r

See Op. 7040L40 Front compartment scuff strip - r r

13 Body & interior
