BodyRear seat cushion - r+r

Rear seat cushion - r+r

Operation 7050A22 · Rear seat assembly

Removal

Move the front seat fully forward.

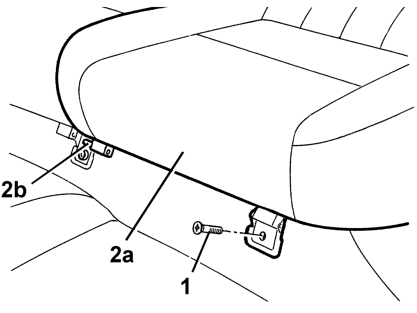

1 Unscrew the outer cushion retaining bolt.

2 Remove cushion 2a by taking pin 2b out of the central mount.

Refitting

Check that the cushion is undamaged.

Fit the cushion by engaging the pin.

Tighten the outer bolt.

Move the front seat backward.
