TRANSFER BOX
8
OVERHAUL
SELECTOR FORK ASSEMBLY
Service repair no - 41.20.40/01
Remove
1. Remove viscous coupling assembly.
See this
section.

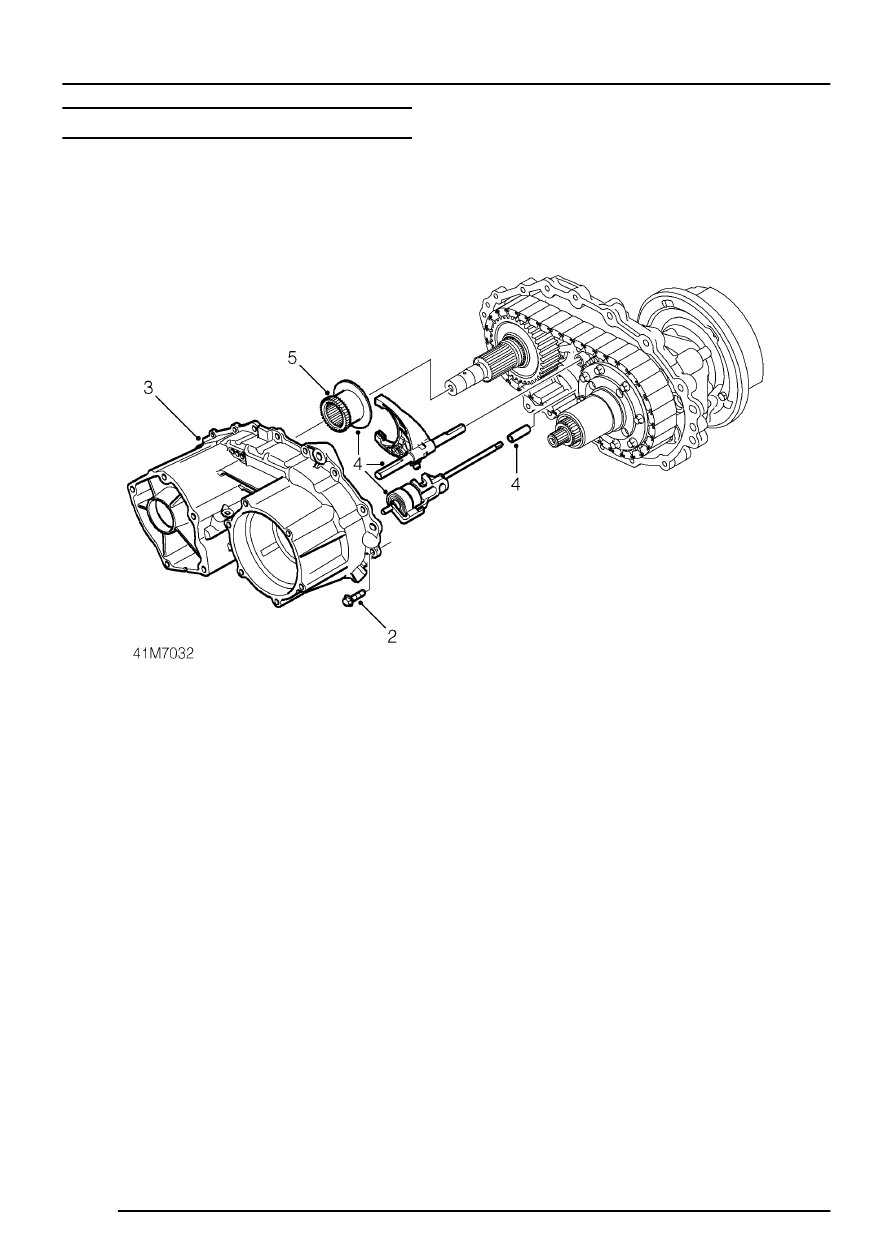

2. Remove 17 bolts securing halves of transfer
box casing.
3. Carefully break RTV seal and remove front
transfer box casing from rear casing.
4. Remove selector fork assembly, interlock spool
shaft and reduction hub from rear casing.
Collect tube spacer.
5. Remove reduction hub from selector fork
assembly.
