TRANSFER BOX
DESCRIPTION AND OPERATION
1

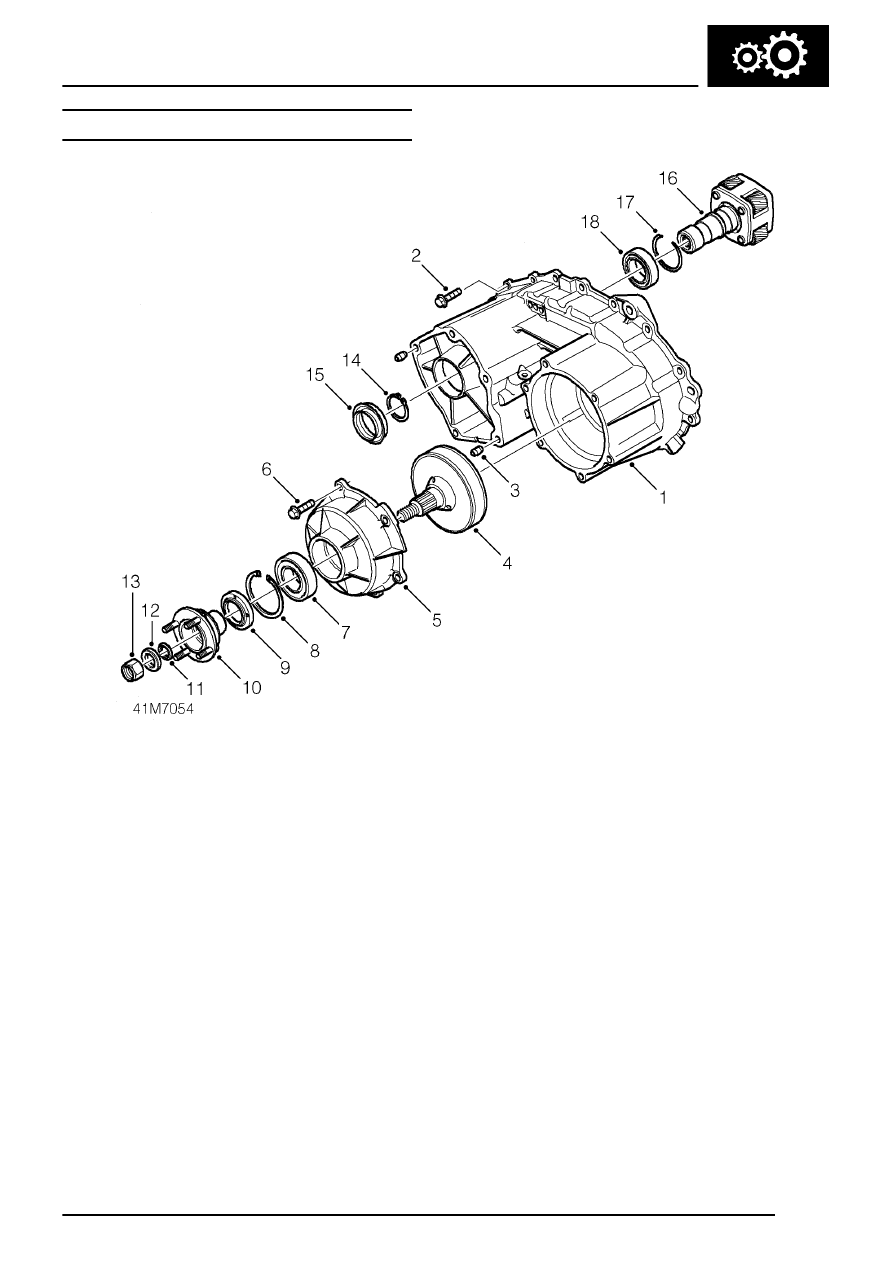

GEARBOX COMPONENTS
1. Front casing - transfer box
2. Bolt - front casing to rear casing
3. Dowel - transfer box to gearbox
4. Viscous coupling
5. Housing - viscous coupling
6. Bolt - viscous coupling housing to front casing
7. Bearing - front output shaft
8. Circlip - bearing retention
9. Oil seal - front output shaft
10. Drive flange - front output shaft
11. Sealing washer
12. Plain washer
13. Nut - drive flange
14. Circlip - epicyclic gear to bearing
15. Oil seal - input shaft
16. Epicyclic gear set
17. Circlip - bearing retention
18. Bearing - input shaft
