EngineBelt timing system
Belt timing system

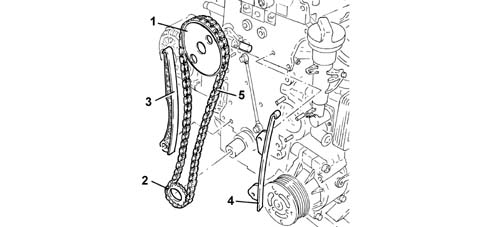

The timing gear is driven directly by chain.
1 - Driven sprocket
2 - Drive sprocket
3 - Moving block
4 - Fixed block
5 - Timing chain
