Introduction - EXHAUST PIPES AND SILENCERS

1.2 8v · Euro 3

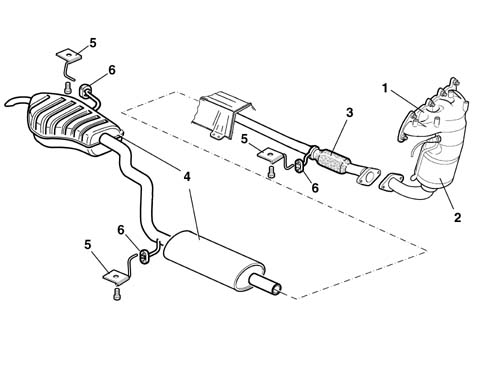

The engine exhaust gases flow through manifold (1) to the three-way catalytic converter (2) (see 1080).

At the front of the exhaust pipe, there is a flexible component (3) for limiting the transmission of vibrations.

The rear exhaust section comprises two silencers (4).

Special guards limit the radiation of heat towards the bodyshell.

The various components are supported by mountings (5) and rubber rings (6) secured to the underbody.

1.2 16v · Euro 3

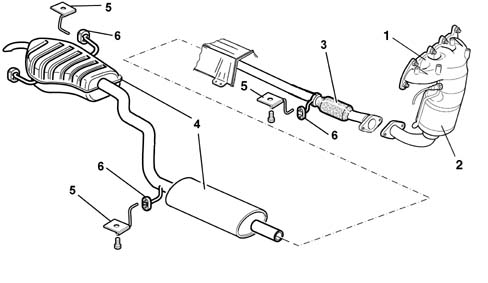

The engine exhaust gases flow through manifold (1) to the three-way catalytic converter (2) (see 1080) to which the exhaust pipe is connected by means of a flange.

At the front of the exhaust pipe, there is a flexible component (3) for limiting the transmission of vibrations.

The rear exhaust section comprises two silencers (4).

Special guards limit the radiation of heat towards the bodyshell.

The various components are supported by mountings (5) and rubber rings (6) secured to the underbody.

1.4 16v

The engine exhaust gases flow through manifold (1) to the three-way catalytic converter (2) (see 1080) to which the exhaust pipe is connected by means of a flange.

At the front of the exhaust pipe, there is a flexible component (3) for limiting the transmission of vibrations.

The rear exhaust section comprises two silencers (4).

Special guards limit the radiation of heat towards the bodyshell.

The various components are supported by mountings (5) and rubber rings (6) secured to the underbody.

1.3 JTD

Structure

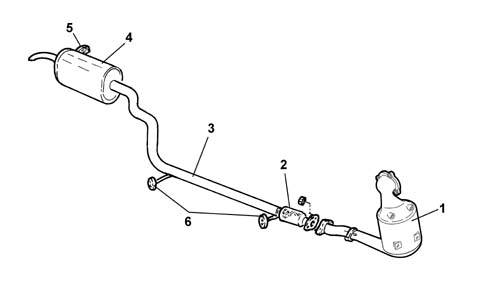

The engine exhaust gases flow through the manifold to the turbocharger and then to the oxidizing catalytic converter (1) Characteristic of working principle 1080B exhaust emission control system

At the front of the exhaust pipe, there is a flexible component (2) for limiting the transmission of vibrations.

The rear section of the exhaust pipe consists of an intermediate pipe (3) and the rear silencer (4).

Special guards limit the radiation of heat towards the bodyshell.

The various components are supported by mountings (5) and rubber rings (6) secured to the underbody.
