Radiator cooling fan - r + r

Operation 1088E10 · Coolant temperature control devices

1.2 8v

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in OFF position, then disconnect the battery negative terminal (-).

Proceed with removal - 1048A10 air cleaner filtering element - replace.

Proceed with removal - 7210E10 R.R. FRONT BUMPER.

1. Disconnect the electrical connections from the engine cooling fan resistor.

2. Disconnect the electrical connection for the radiator cooling fan and move the electrical wiring to the side.

1.2 16v

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in OFF position, then disconnect the battery negative terminal (-).

Proceed with removal - 1048A10 air cleaner filtering element - replace.

Proceed with removal - 7210E10 R.R. FRONT BUMPER.

1. Disconnect the electrical connections from the engine cooling fan resistor.

2. Disconnect the electrical connection for the radiator cooling fan and move the electrical wiring to the side.

1.4 16v

Removing

Position the vehicle on the ramp.

Ensure that the ignition key is in OFF position, then disconnect the battery negative terminal (-).

Proceed with removal - 1048A10 air cleaner filtering element - replace.

Proceed with removal - 7210E10 R.R. FRONT BUMPER.

1. Disconnect the electrical connections from the engine cooling fan resistor.

2. Disconnect the electrical connection for the radiator cooling fan and move the electrical wiring to the side.

1.3 JTD

Removing

Ensure that the ignition key is in OFF position, then disconnect the battery negative terminal (-).

1. Disconnect the electrical connection from the air flow meter.

2. Loosen the band and disconnect the the turbocharger air inlet sleeve from the rigid pipe, air flow meter side.

1.2 8v

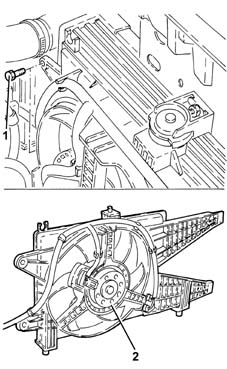

1. Undo the bolt fixing the radiator cooling fan to the bodyshell.

Secure the air conditioning condenser to the bodyshell.

2. Undo the bolts securing the air conditioning condenser to the radiator cooling fan.

1.2 16v

1. Undo the bolt fixing the radiator cooling fan to the bodyshell.

Secure the air conditioning condenser to the bodyshell.

2. Undo the bolts securing the air conditioning condenser to the radiator cooling fan.

1.4 16v

1. Undo the bolt fixing the radiator cooling fan to the bodyshell.

Secure the air conditioning condenser to the bodyshell.

2. Undo the bolts securing the air conditioning condenser to the radiator cooling fan.

1.3 JTD

1. Remove the air filter (1a) complete with air flow meter (1b) by releasing from the underlying pins and then from the rear fastenings.

1.2 8v

1. Undo the bolts fixing the radiator cooling fan.

Release the air conditioning condenser pins from the radiator cooling fan.

2. Remove the radiator cooling fan.

1.2 16v

1. Undo the bolts fixing the radiator cooling fan.

Release the air conditioning condenser pins from the radiator cooling fan.

2. Remove the radiator cooling fan.

1.4 16v

1. Undo the bolts fixing the radiator cooling fan.

Release the air conditioning condenser pins from the radiator cooling fan.

2. Remove the radiator cooling fan.

1.3 JTD

1. Disconnect the electrical connection from the engine fan motor.

2. Disconnect the electrical connections from the engine cooling fan resistor.

3. Release electrical wiring (3a) from fastenings (3b) and move aside.

1.2 8v

Refitting

Place the radiator cooling fan back in its housing and position the air conditioning condenser pins on the actual fan.

Tighten the bolts fixing the radiator cooling fan.

Tighten the bolts fixing the air conditioning condenser to the radiator cooling fan.

Tighten the bolt fixing the radiator cooling fan to the bodyshell.

Connect the electrical connection to the radiator cooling fan.

Connect the electrical connections to the resistor for the engine cooling fan.

Proceed with refitting - 7210E10 R.R. FRONT BUMPER.

Proceed with refitting - 1048A10 air cleaner filtering element - replace.

Connect the negative (-) battery terminal.

Remove the car from the ramps.

1.2 16v

Refitting

Place the radiator cooling fan back in its housing and position the air conditioning condenser pins on the actual fan.

Tighten the bolts fixing the radiator cooling fan.

Tighten the bolts fixing the air conditioning condenser to the radiator cooling fan.

Tighten the bolt fixing the radiator cooling fan to the bodyshell.

Connect the electrical connection to the radiator cooling fan.

Connect the electrical connections to the resistor for the engine cooling fan.

Proceed with refitting - 7210E10 R.R. FRONT BUMPER.

Proceed with refitting - 1048A10 air cleaner filtering element - replace.

Connect the negative (-) battery terminal.

Remove the car from the ramps.

1.4 16v

Refitting

Place the radiator cooling fan back in its housing and position the air conditioning condenser pins on the actual fan.

Tighten the bolts fixing the radiator cooling fan.

Tighten the bolts fixing the air conditioning condenser to the radiator cooling fan.

Tighten the bolt fixing the radiator cooling fan to the bodyshell.

Connect the electrical connection to the radiator cooling fan.

Connect the electrical connections to the resistor for the engine cooling fan.

Proceed with refitting - 7210E10 R.R. FRONT BUMPER.

Proceed with refitting - 1048A10 air cleaner filtering element - replace.

Connect the negative (-) battery terminal.

Remove the car from the ramps.

1.3 JTD

1. Undo the side bolts fixing the radiator cooling fan to the radiator.

2. Remove the radiator cooling fan.

Refitting

Place the radiator cooling fan back in its housing.

Tighten the side bolts securing the radiator cooling fan to to the radiator.

Connect the electrical connections to the resistor for the engine cooling fan.

Connect the electrical connection to the engine fan motor.

Replace the air filter, complete with air flow meter, in its housing.

Connect the air intake sleeve to the turbocharger, air flow meter side, and tighten the band.

Connect the electrical connection to the air flow meter.

Connect the negative (-) battery terminal.
