Check on operation of timing sensor

Make

Lancia

Model

Ypsilon Factory Service Manual

Year

2003–2011

Section

Diesel fuel injection › Check on operation of timing sensor

EngineCheck on operation of timing sensor

Check on operation of timing sensor

Check 1060GC

1.3 JTD

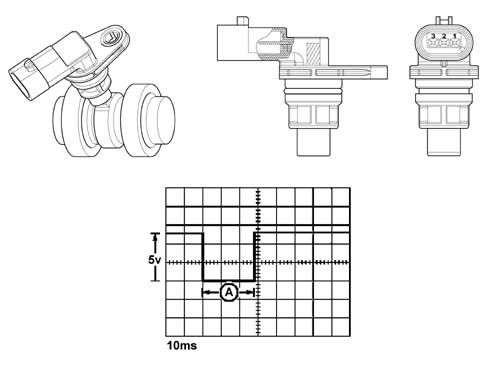

Check that the sensor output signal is similar to the one illustrated in the enclosed graph.

Pin 1 Description, earth Signal type, earth

Pin 2 Description, timing signal Signal type, frequency output

Pin 3 Description, supply Signal type, 12 V input

08 Engine
