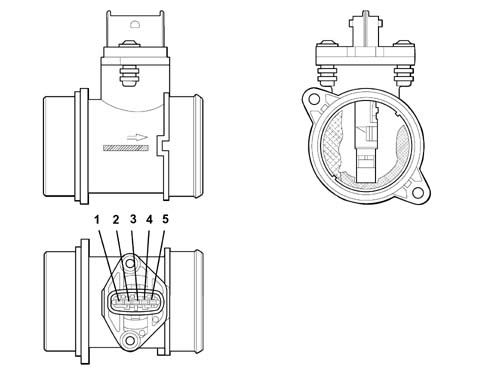

Check on operation of air flow meter

Check 1060GB

1.3 JTD

Check that the air flow meter technical specifications correspond to the data given below:

Flow meter sensitive element principle diagram

typical curves [Air flow arte - Output voltage] and [Temperature - Resistance]

Pin 1 Description: temperature sensor Signal type: analogue output

Pin 2 Description: supply Signal type: 12V supply

Pin 3 Description: earth Signal type: earth

Pin 4 Description, reference voltage Signal type: 5V

Pin 5 Description: sensor output Signal type: analogue output.
