SpecificationsVehicle dimensions

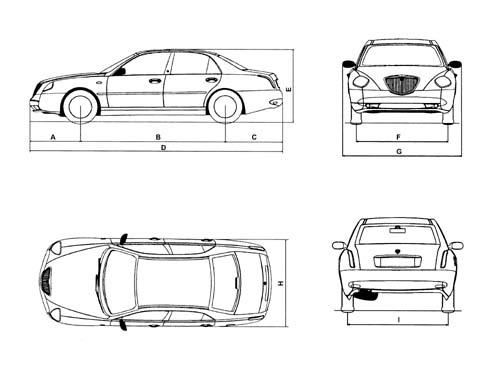

VEHICLE DIMENSIONS

All versions

	2.0 TB 20V	2.4 BZ 20V	2.4 BZ 20V CAE	3.0 V6 24V	3.2 V6 24V
A (mm)	975	975	975	975	975
B (mm)	2803	2803	2803	2803	2803
C (mm)	1110	1110	1110	1110	1110
D (mm)	4888	4888	4888	4888	4888
E (mm)	1465	1465	1465	1470	1470
F (mm)	1569 ÷ 1573	1569 ÷ 1573	1569 ÷ 1573	1569 ÷ 1573	1569 ÷ 1573
G (mm)	2002	2002	2002	2002	2002
H (mm)	1836	1836	1836	1836	1836
I (mm)	1541 ÷ 1545(a) (.)	1541 ÷ 1545(a) (.)	1541 ÷ 1545(a) (.)	1541 ÷ 1545(a) (.)	1541 ÷ 1545(a) (.)

• (a) - 225/50 R 17 tyre
• (b) 215/60 R 16 tyre to which chains can be fitted (10 mm chains)
• (.) - empty load plus supply

	2.4 JTD 10V	2.4 JTD 20V	2.4 JTD 20V CAE
A (mm)	975	975	975
B (mm)	2803	2803	2803
C (mm)	1110	1110	1110
D (mm)	4888	4888	4888
E (mm)	1465	1470	1470
F (mm)	1569 ÷ 1573	1569 ÷ 1573	1569 ÷ 1573
G (mm)	2002	2002	2002
H (mm)	1836	1836	1836
I (mm)	1541 ÷ 1545(a) (.)	1541 ÷ 1545(a) (.)	1541 ÷ 1545(a) (.)

Luggage compartment capacity (V.D.A. standards): dm³ 480 -
