MANUAL GEARBOX AND DIFFERENTIAL ASSEMBLY

2.0 TB, 2.4 20V, 2.4 JTD 10V

CONSTRUCTION SPECIFICATIONS

The structure of the gearbox consists of:

  • a gearbox casing configuration with the elimination of the rear cover. This contains and supports the main and lay shafts, the gear engagement forks and rods and the gear selector/engagement device.
  • bell housing which contains the clutch, the thrust bearing and the control device.

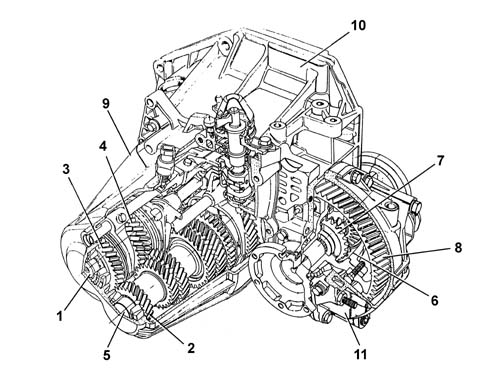

MANUAL GEARBOX AND DIFFERENTIAL ASSEMBLY
  • 1 Main shaft.
  • 2 6th speed drive gear.
  • 3 5th speed drive gear.
  • 4 4th speed drive gear.
  • 5 Layshaft.
  • 6 Satellite gears.
  • 7 Planet gears.
  • 8 Ring gear.
  • 9 Gearbox casing.
  • 10 Clutch casing.
  • 11 Differential support casing.
