Lancia Thesis Factory Service Manual (2002-2009)08 · Engine
08 · Engine

Composition

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Engine lubrication › Composition
EngineComposition

Composition

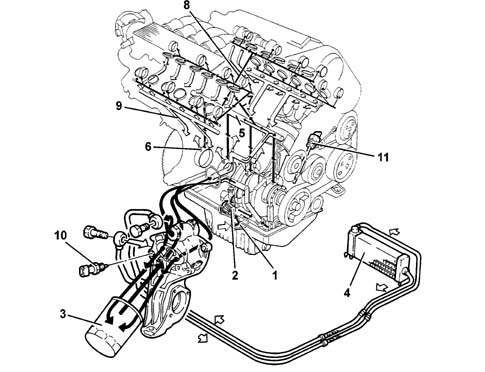

3.0 V6, 3.2 V6

STRUCTURE

The engine lubrication system is shown below.

Composition
  • 1 Suction head with filter mesh
  • 2 Oil pump
  • 3 Oil filter cartridge
  • 4 Engine oil heat exchanger
  • 5 Main longitudinal channel
  • 6 Jets (piston skirt cooling)
  • 7 Vertical channel (camshaft mounting - right head lubrication)
  • 8 Vertical channel (camshaft mounting - left head lubrication)
  • 9 Oil falling back into sump
  • 10 Switch for engine oil pressure warning light
  • 11 Engine oil level sensor

2.0 TB

STRUCTURE

Composition

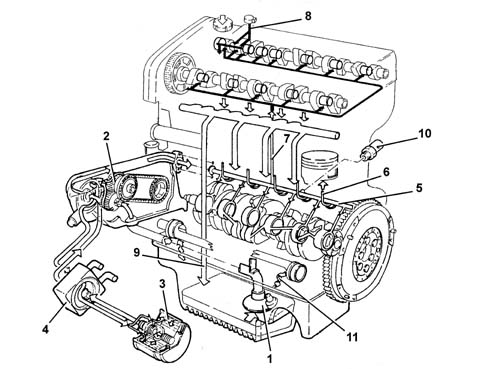

2.4 20V

STRUCTURE

The engine lubrication system is shown below.

Composition
  • 1 Suction head with filter mesh.
  • 2 Oil pump.
  • 3 Oil filter cartridge.
  • 4 Engine oil heat exchanger.
  • 5 Main longitudinal channel.
  • 6 Sprays.
  • 7 Vertical channel (camshaft mounting lubrication).
  • 9 Variable valve timing actuation channels.
  • 9 Oil falling back into sump.
  • 10 Switch for engine oil pressure warning light.
  • 11 Counter-rotating shaft channel.
