Auxiliary shaft pulley - R.R.

Make
Lancia
Model
Thesis Factory Service Manual
Year
2002–2009
Section
Engine component miscellaneous drives › Auxiliary shaft pulley - R.R.
EngineAuxiliary shaft pulley - R.R.

Auxiliary shaft pulley - R.R.

Operation 1092A10 · CRANKSHAFT PULLEY AND IDLER PULLIES

2.4 JTD 10V

Removing

- Position the vehicle on a lift.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 4450B04 Right FRONT WHEEL (one) - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

See in Op. 1092G10

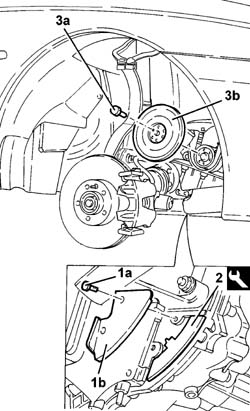

1. Undo the bolts (1a) and remove the lower flywheel guard (1b).

2. Fit the flywheel lock.

DescriptionCodeFunction
2Counter-torque1.860.898.000Locking crankshaft pulley rotation

3. Undo the fixing bolts (3a) and remove the auxiliary shaft drive pulley (3b).

Auxiliary shaft pulley - R.R.

Refitting

- Fit the auxiliary shaft drive pulley.

- Tighten the bolts fixing the crankshaft pulley to torque.

Value - daNmFasteningComponentØ
2.5BoltCRANKSHAFT PULLEYM8

- Remove the flywheel lock.

DescriptionCodeFunction
Counter-torque1.860.898.000Locking crankshaft pulley rotation

- Fit the lower flywheel guard.

See in Op. 1092G10

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

See in Op. 4450B04 Right FRONT WHEEL (one) - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

- Remove the vehicle from the lift.
