Composition

2.4 JTD 20V

STRUCTURE

(See assembly ) 1060G

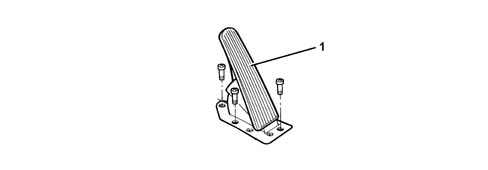

• 1 Accelerator control pedal

This is fitted to the vehicle floorpan with 3 bolts and incorporates a potentiometer

3.0 V6, 3.2 V6

STRUCTURE

This consists of a pedal connected by a link to accelerator pedal potentiometer [DF 1060G]. The potentiometer informs the injection/ignition control unit of accelerator pedal position.

• 1 Accelerator pedal

Thisis bolted to the vehicle floor pan with 3 bolts and incorporates a potentiometer.

2.0 TB

STRUCTURE

It comprises a pedal connected by means of a special rod to the accelerator pedal potentiometer [DF 1056]. The latter informs the injection/ignition control unit of the position of the accelerator pedal.

• 1 Accelerator pedal.

It is fitted on the floor of the vehicle fastened by 3 bolts and incorporates a potentiometer.

2.4 JTD 10V

STRUCTURE

This takes the form of a pedal conneced via a special link to the accelerator pedal potentiometer [DF 1060G]. This potentiometer informs the injection/ignition control unit of accelerator pedal position.

• 1 Accelerator control pedal

This is fitted to the vehicle floorpan with 3 bolts and incorporates a potentiometer

2.4 20V

STRUCTURE.

This takes the form of a pedal connected to accelerator pedal potentiometer [DF 1056] via a special link. The the potentiometer provides the injection/ignition control unit with information on accelerator pedal position.

• 1 Accelerator pedal.

This is fitted to the vehicle floor pan with 3 bolts and incorporates a potentiometer.
