TUNNEL CONTROL PANEL

There are several buttons on the tunnel control panel for activating the following functions:

  • activating/deactivating ASR function
  • deactivating front parking sensors.

There is a (green) LED in the button for switching off the front parking sensors that confirms whether or not it is activated, whilst the LED for the ASR button is amber.

For further information on the function operating strategies

(See subassembly ) 5505 INSTRUMENT/GAUGE ELECTRICAL CIRCUITS

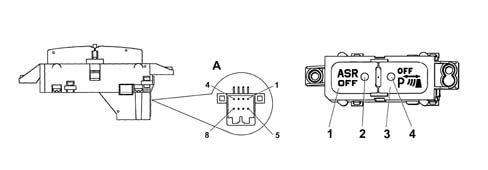

TUNNEL CONTROL PANEL
  • 1 Activating/deactivating ASR function button
  • 2 Activating/deactivating ASR function LED
  • 3 Front parking sensors activting/deactivating button
  • 4 Front parking sensors activting/deactivating LED

Connector A PIN OUT

PINFUNCTION
1+ ASR on/off
2earth
3parking sensors on/off
4+ parking sensors LED
5ASR LED
6+ lighting
7+ fuse 49 switching off ASR/LED
8Not connected
