DASHBOARD CONTROL UNIT (CPL)

SPECIFICATIONS

It is located on the Body Computer (NBC).

The Dashboard Node (fitted in the area under the dashboard on the steering wheel side) consists of an electronic section (NBC) and an electro-mechanical section (CPL) connected to one another and making up a single assembly. The control unit is equipped with fuses and relays.

Both the electronic and electro-mechanical sections also carry out functions of connecting with the system and have fixed connectors for connection with the front, rear and dashboard wiring.

There are fuses and relays fitted to the electro-mechanical section, whilt there is a fixed EOBD connector on the electronic section which is capable of carrying out fault diagnosis via the K line for the Engine Management Control Unit Node and the systems not connected to the B-CAN line (e.g. Air Bag, controlled suspension, etc.) and via the B-CAN line for the nodes connected to it.

The connector is also prepared for dialogue with the C-CAN line, used for the fault diganosis of all the control units connected to the CAN (excluding the NCM).

The connectors for connection with the front and rear wiring (and the EOBD wiring) are accessible at the front (fuse side), whilst those for connection with the dashboard wiring are located on the opposite side.

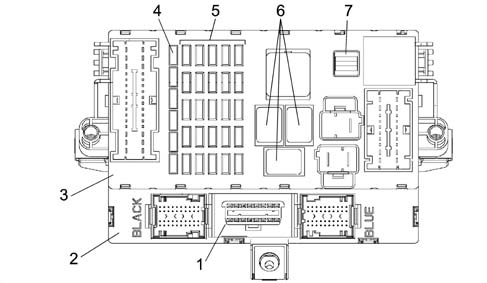

DASHBOARD CONTROL UNIT (CPL)
  • 1 Diagnostic socket EOBD connector
  • 2 Body Computer (NBC)
  • 3 Dashboard Control Unit (CPL) fitted on the NBC node (CPL+NBC=NPL: Dashboard Node)
  • 4 Reserve fuses
  • 5 System protective fuses
  • 6 Relays
  • 7 Fuse extraction pliers

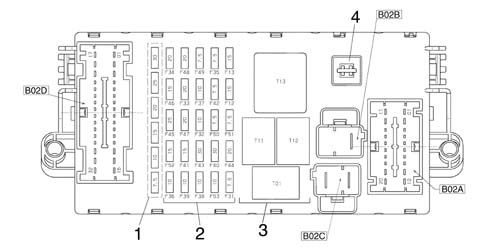

DASHBOARD CONTROL UNIT (CPL)
The front view of the dashboard control unit is illustrated in the diagram below.
  • 1 Reserve fuses
  • 2 Protective fuses
  • 3 Relays
  • 4 Pliers
  • B02C - 2 pin connector
  • B02B - 2 pin connector
  • B02D - 32 pin connector
  • B02A - 20 pin connector

The CPL dashboard control unit protects the electrical system through the following fuses:

CODCOMPONENTIn[A]TYPE
F-12FUSE RIGHT DIPPED HEADLAMP15mini
F-13FUSE LEFT DIPPED HEADLAMP/CAF GO AHEAD15mini
F-31FUSE INT/A FOR REVERSING LIGHTS/CVM RELAY COILS7,5mini
F-32FUSE CENTRE REAR, DOOR, BOOT COURTESY LIGHTS10mini
F-33FUSE NVB 1 POWER SUPPLY20mini
F-34FUSE NVB 2 POWER SUPPLY20mini
F-35FUSE +15 SCC, NAC, CLA (NC)7,5mini
F-36FUSE +30 TRAILER CONTROL UNIT (PREPARATION)10mini
F-37FUSE +15 CLA (NA), THIRD BRAKE LIGHT, NQS, CAF10mini
F-38FUSE FUEL FLAP LOCKING/UNLOCKING GEARED MOTOR10mini
F-39FUSE NIM, NIT, NCL, EOBD DIAGNOSTIC SOCKET, CSA, PLAF. ENGINE COMPARTMENT10mini
F-40FUSE HEATED REAR WINDSCREEN30mini
F-41FUSE WINDSCREEN/REARSCREEN WASHER JET DEFROSTER, HEATED WINDSCREEN15mini
F-42FUSE +15 NFR, NBA, NAS, NYL7,5mini
F-43FUSE WINDSCREEN WASH/WIPE30mini
F-44FUSE CIGAR LIGHTER - CURRENT SOCKET LUGGAGE COMPARTMENT20mini
F-45FUSE SOLENOIDS FOR HEAD RESTRAINT FOLDING, REARSCREEN WASHER PUMP25mini
F-46FUSE REARSCREEN BLIND MOTOR15mini
F-47FUSE NPG POWER SUPPLY20mini
F-48FUSE NPP POWER SUPPLY20mini
F-49FUSE +15 FOR NVO, SCS, NSP, NCL, CSG, PCT, NTV, NEC7,5mini
F-50FUSE AIR BAG SYSTEM7,5mini
F-51FUSE +15 NCA, WINDSCREEN WIPER CONTROLS, CPP, CLE (DUSK SENSOR ADJUST.), NPP7,5mini
F-52FUSE REARSCREEN WASH/WIPE, CURRENT SOCKET ON TUNNEL15mini
F-53FUSE +30 DIRECTION INDICATORS/HAZARD WARNING LIGHTS, NQS10mini

The following relays are housed in the dashboard control unit CPL:

CODCOMPONENTIn[A]TYPE
T01DIPPED HEADLAMPS RELAY30micro
T11HEATED REAR WINDSCREEN RELAY30micro
T12SERVICES 1 RELAY (DEPENDENT ON IGNITION SWITCH INT/A)30micro
T13SERVICES 2 RELAY (DEPENDENT ON BC)50micro

PIN OUT

DASHBOARD CONTROL UNIT (CPL)
Front view.
  • 1 Connector B02C (2 way)
  • 2 Connector B02B (2 way)
Conn.PinFunction
B02CA+30 from F-71 CBA
B02CB+30 from F-72 CBA
B02BB+30 from F-72 CBA to dashboard cable (preparation)
B02BANot available
DASHBOARD CONTROL UNIT (CPL)
CONNECTOR B02D (32 way)
Conn.PinFunction
B02D1NVB 1 power supply from F-33
B02D2NVB 2 power supply from F-34
B02D3Supply from F-46 for rearscreen blind motor
B02D4Supply for rear head restraint folding electro-magnets from F-45
B02D5Additional brake light supply (connection with B02A 15)
B02D6NA brake lights positive signal (preparation, connection with B02A 15)
B02D7Supply for left reversing light from switch on gearbox (connection with B02A 8)
B02D8Supply for right reversing light from switch on gearbox (connection with B02A 8)
B02D9Positive signal for rearscreen wash/wipe to NVB for SW versions (connection with B02G 15)
B02D10J.C. B-CAN A at rear cable
B02D11+30 from F-32 for rear courtesy light, boot/tailgate light, front courtesy lights
B02D12Supply for current socket on tunnel and rearscreen wiper motor from F-52
B02D13+30 from F-36 for Trailer Control Unit
B02D14Supply for luggage compartment current socket from F-44
B02D15Supply for heated rear windscreen from F-40
B02D16Fuel flap locking motor positive control (connection with B02E 10)
B02D17NPP power supply from F-48
B02D18Fuel flap unlocking geared motor positive control (connection with B02E 11)
B02D19INT from F-49 for Cell Phone Preparation
B02D20Negative signal for rearscreen wiper motor to NVB for SW versions (connection with B02G 11)
B02D21INT from F-49 (preparation)
B02D22Seat belts warning light negative signal to NQS (connection with B02G 5)
B02D23INT from F-49 for PCT
B02D24INT from F-49 for NSP
B02D25INT from F-51 (preparation)
B02D26INT from F-51 for NPB
B02D27INT from F-51 for Tyre Inflation Pressure monitoring control unit
B02D28J.C. B-CAN B at rear cable
B02D29Not available
B02D30NPG power supply from F-47
B02D31Supply for windscreen/rearescreen jet defrosters and heated windscreen from F-41
B02D32Supply for fuel pump to tank (connection with B02A 9)
DASHBOARD CONTROL UNIT (CPL)
CONNECTOR B02A (20 way)
Conn.PinFunction
B02A1Track to B02G 18 (preparation)
B02A2Dipped headlamps enablement from F-13 for Headlamp Alignment Control Unit
B02A3Left dipped headlamp supply from F-13
B02A4MIL warning light control signal from NCM (connection with B02G 1)
B02A5Supply for engine oil level sensor (connection with B02H 16)
B02A6Signal from engine oil level sensor (connection with B02H 15)
B02A7Ignition switch INT/A from F-31 for CVM
B02A8Supply for reversing lights from switch on gearbox (connection with B02D 7, B02D 8)
B02A9Supply for fuel pump from relay (connection with B02D 32)
B02A10CTC supply from F-43
B02A11INT from F-42 for NFR, NAS, NYL, NBA
B02A12Right dipped headlamp supply from F-12
B02A13INT from F-51 for NCA, NSC
B02A14INT from F-37 for NA brake lights (to the switch on the pedal assembly)
B02A15Brake lights supply from switch on pedal assembly (connection with B02E 2, B02D 5, B02D 6, B02D 16)
B02A16Brake lights signal (NA) for NCM/SCS (connection with B02A 15)
B02A17INT from F-35 for cruise control (SCC)
B02A18INT from F-35 for NAC
B02A19INT from F-35 for CLA (NC)
B02A20CPL earth track (preparation, connection with B02H 10)

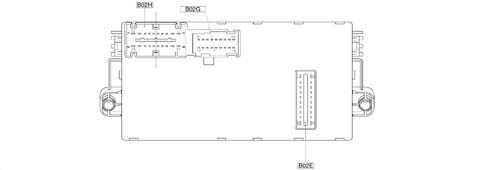

DASHBOARD CONTROL UNIT (CPL)
Rear view
  • B02H - 20 pin connector
  • B02G - 18 pin connector
  • B02E - 10 pin connector
DASHBOARD CONTROL UNIT (CPL)
CONNECTOR B02H (20 way)
Conn.PinFunction
B02H1INT/A from ignition switch
B02H2Parking lights negative signal from CLE (connection with B02E 12)
B02H3INT from F-49 (preparation)
B02H4INT from F-49 for CSG, NCL, NVO, SCS, NTV, CLE (control lights dimmer)
B02H5B-CAN B for NIT
B02H6INT from F-50 for Air Bag Control Unit
B02H7+30 from F-39 for NCL
B02H8+30 from F-39 for NIT
B02H9Cigar lighter supply from F-44
B02H10CPL power earth (connection with B02E 10, B02G 10, B02A 20)
B02H11INT from ignition switch
B02H12INT from F-51 for dusk sensor setting adjustment at CLE
B02H13INT from F-51 for wiper controls
B02H14INT from F-31 for NBC
B02H15Signal from engine oil level sensor to NQS (connection with B02A 6)
B02H16Supply for engine oil level sensor from NQS (connection with B02A 5)
B02H17B-CAN A for NIT
B02H18Not available
B02H19Supply from F-48 (preparation)
B02H20Supply from F-47 (preparation)
DASHBOARD CONTROL UNIT (CPL)
CONNECTOR B02G/F (9+9 way)
Conn.PinFunction
B02G1MIL warning light negative signal to NQS
B02G2INT from F-37 (preparation)
B02G3Not available
B02G4Not available
B02G5Seat belts warning light negative signal to NQS (connection with B02D 22)
B02G6Not available
B02G7Not available
B02G8INT from F-51 (preparation)
B02G9INT from F-51 (preparation)
B02F10Earth track (preparation, connection with B02H 10)
B02F11Negative signal for rearscreen wiper from steering column switch unit for SW versions (connection with B02D 20)
B02F12INT from F-49 for hazard warning lights ideogram light
B02F13External supply for F-51 (preparation)
B02F14Supply + dipped headlamps from F-13 (preparation)
B02F15Positive signal for rearscreen wiper from steering column switch unit for SW versions (connection with B02D 9)
B02F16+30 from F-32 (preparation)
B02F17Supply from F-52 (preparation)
B02F18Track to B02A 1 (preparation)

CONNECTOR B02E MALE CONNECTOR BETWEEN DASHBOARD CONTROL UNIT (CPL) AND BODY COMPUTER (NBC)

Conn.PinFunction
B02E1+30 from F-38 for fuel flpa locking/unlocking geared motor
B02E2Left/right brake lights signal (preparation, connection with B02A 15)
B02E3Positive signal for reversing lights (connection with B02A 8)
B02E4Not available
B02E5B-CAN B from NBC
B02E6Negative signal controlling heated rear windscreen relay coil (T11)
B02E7B-CAN A from NBC
B02E8Negative signal controlling dipped headlamps relay coil (T01)
B02E9INT for BC
B02E10Fuel flap locking geared motor positive control (connection with B02D 16)
B02E11Fuel flap unlocking geared motor positive control (connection with B02D 18)
B02E12Parking lights negative signal from CLE (connection with B02H 2)
B02E13INT from F-37 for NQS/CAF
B02E14Negative signal controlling services relay coil 2 (T13)
B02E15INT for F-51 supply from NBC (connection with B02E 9)
B02E16Not available
B02E17+30 from F-39 for NIM, CSA, EOBD diagnostic socket
B02E18+30 for NBC (immobilizer, CAN, side lights, rear fog lamps, brake lights SBMT driver, +lights driver)
B02E19+30 from F-53 for direction indicators/hazard warning lights, NQS
B02E20Earth for fuel flap locking/unlocking geared motor (connection with B02H 10)
