Specifications

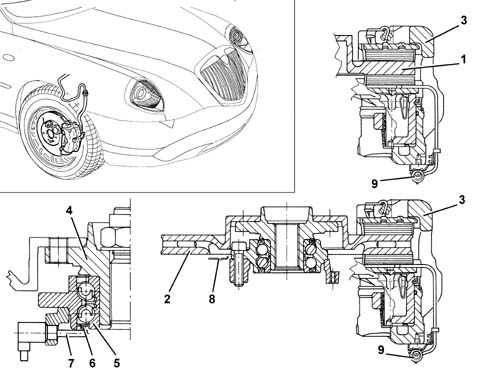

The vehicle is equipped with self-ventilated discs and floating type cast iron calipers with automatic recovery of the clearance.

A multi-polar magnetic ring is fitted on the hub bearing inner race that signals the movement of the wheel to the ABS active sensor.

(See subassembly ) 3340 ANTI-LOCK BRAKING SYSTEM (A.B.S.)

• 1 Brake disc
• 2 Brake caliper
• 3 Hub
• 4 Hub
• 5 Bearing
• 6 Magnetic ring
• 7 ABS active sensor
• 8 Shield

The brake calipers are equipped with an electronic parking brake safety system (E.P.B.).

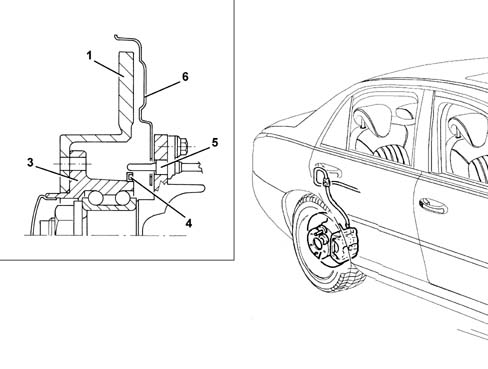

The outer ring of the hub has a multipolar magnetic ring that signals the movement of the wheel to the ABS active sensor fastened to the suspension arm.

(See subassembly ) 3340 ANTI-LOCK BRAKING SYSTEM (A.B.S.)

• 1 Brake disc
• 2 Brake caliper
• 3 Hub outer ring
• 4 Hub
• 5 ABS active sensor
• 6 Shield
