FRONT BUMPER

Operation 7210E10 · EXTERNAL PARTS

Removing

- Position the vehicle on a lift.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

See in Op. 4450B04 Right FRONT WHEEL (one) - R.R.

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- < R1 > (right side)

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- < R1 > (right side)

1. Undo the retaining bolts.

2. Remove the bumper reinforcement bracket.

1. Undo the fixing bolts (1a) and the nut (1b).

2. Release the headlamp washer fluid reservoir from the housing in order to be able to gain easy access to the bolts fixing the bumper.

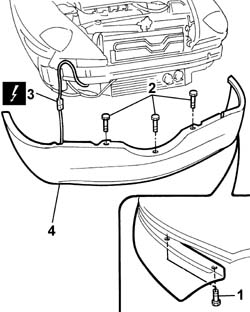

1. Undo the bolts fixing the bumper to the left and right front wings.

2. Undo the bolts securing the bumper to the lower crossmember.

3. Disconnect the electrical connection for the fog lights.

4. Remove the front bumper.

Take special care not to damage the paintwork.

Refitting

- Check that the bumper is not damaged.

- Position the bumper and connect the fog lights connector.

- Tighten the bolts fixing the bumper to the lower crossmember and to the left and right wings.

- Place the headlamp washer fluid reservoir in position and secure it using the bolts and the nut.

- Fit the bumper mounting bracket and tighten the fixing bolts.

See in Op. 7055B64 Engine compartment DUST SEAL in front wheel arch (one), left or right - R.R.

- < R1 > (right side)

See in Op. 7055B42 FRONT WHEEL ARCH LINER (one), left or right - R.R.

- < R1 > (right side)

See in Op. 4450B04 Right FRONT WHEEL (one) - R.R.

See in Op. 7055B54 PROTECTION/GUARD under engine - R.R.

- Remove the vehicle from the lift.
