FRONT SPEAKER - R R

Operation 5570T90 · CAR RADIO AND CAR TELEPHONE

Removing

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

- Disconnect the negative battery terminal.

Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R

Op. 7040E24 LOWER COURTESY LIGHT INDOOR PANEL - R+R

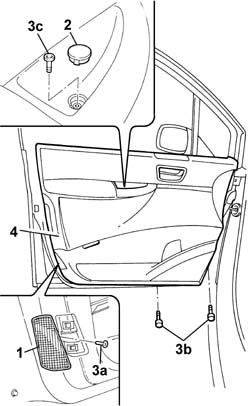

1. Release the reflector using a suitable tool and remove it.

2. Release the trim using a suitable tool and remove it.

- Release the fixing buttons using the special tool.

- Release the fixing buttons.

- Release the door panel.

- Disconnect the door opening rod.

- Disconnect the electrical connection for the speaker.

1. Undo the retaining bolts.

2. Remove the speaker.

Refitting

- Position the speaker.

- Tighten the retaining bolts.

- Connect the door opening rod.

- Connect the electrical connection for the speaker.

- Position the door panel and secure it using the special fixing buttons.

- Tighten the retaining bolts.

- Position the trim on the handle.

- Position the reflector and secure it.

Op. 7040E24 LOWER COURTESY LIGHT INDOOR PANEL - R+R

Op. 7005M14 SWITCH UNIT CONTROLLING ELECTRIC WINDOWS REAR VIEW MIRRORS AND DOOR LOCK ON DRIVERS SIDE FRONT DOOR R R

- Connect the negative battery terminal.

Op. 5530B60 BATTERY FASTENING BELT/RETAINERS - REPLACE
