Q041 passenger head bag

Make

Fiat

Model

Ulysse Factory Service Manual

Year

2002–2010

Section

Safety devices › Q041 passenger head bag

Connectors and pin-outsQ041 passenger head bag

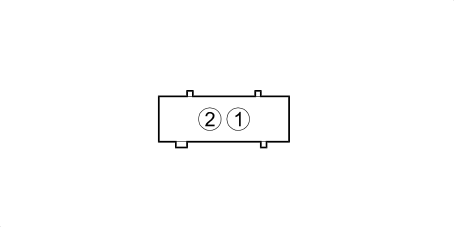

Q041 PASSENGER HEAD BAG

2.0 16V JTD

3.0 24V V6

2.2 16V JTD

2.0 16v

Wiring	Colour
See 25 REAR	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	G - 6553		See D071C PASSENGER SEAT COUPLING (REAR)	2
2	0,5	C - 6529A	X	See M060 AIR BAG CONTROL UNIT	6

2.0 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6529A	X	See M060 AIR BAG CONTROL UNIT	6
2		6553		D071C	2

2.2 16V JTD

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6529A	X	See M060 AIR BAG CONTROL UNIT	6
2		6553		D071C	2

3.0 24V V6

Wiring	Colour
See 25 REAR

Pin	Cable		Destination
	Diameter	Colour	Node	Connector	Pin
1		6529A	X	See M060 AIR BAG CONTROL UNIT	6
2		6553		D071C	2

2.0 16V JTD, 2.2 16V JTD · MY 2005

Wiring	Colour
See 25 REAR	VERDE

Pin	Cable		Destination
	Sec.	Colour	Node	Connect.	Pin
1	0,5	6553		See D071C PASSENGER SEAT COUPLING (REAR)	2
2	0,5	C - 6529A	X	See M060 AIR BAG CONTROL UNIT	6
