R.R. FRONT WING

Operation 7210E18 · EXTERNAL PARTS

Removing

- Position the vehicle on a lift.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

- Disconnect the negative battery terminal.

Op. 5540B90 GAS DISCHARGE FRONT LIGHT CLUSTER WITH DIRECTION INDICATOR AND FOG LIGHT (ONE) LEFT OR RIGHT - R.R.

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 7210E10 R.R. FRONT BUMPER

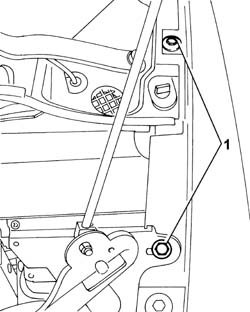

1. Undo the bolts fixing the front wing and the upper section of the front side inner frame.

1. Undo the bolts fixing the front wing and the lower section of the front side inner frame.

- Undo the bolt fixing the front wing and the bodyshell.

1. Undo the bolt fixing the front wing and the lower part of the bodyshell.

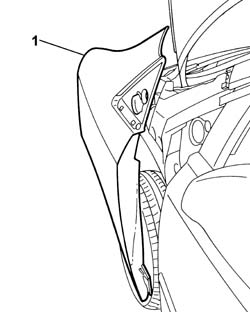

1. Remove the front wing.

Refitting

- Fit the front wing.

- Tighten the bolts fixing the front wing to the lower part of the bodyshell to torque.

- Tighten the bolts fixing the front wing to the bodyshell to torque.

- Tighten the bolts fixing the front wing to the lower part of the front side inner frame to torque.

- Tighten the bolts fixing the front wing to the upper part of the front side inner frame to torque.

Op. 7210E10 R.R. FRONT BUMPER

Op. 7055B90 LEFT FRONT WHEEL ARCH LINER - R.R.

Op. 7055B91 RIGHT FRONT WHEEL ARCH LINER - R.R.

Op. 4450B04 RIGHT FRONT WHEEL R R

Op. 5540B90 GAS DISCHARGE FRONT LIGHT CLUSTER WITH DIRECTION INDICATOR AND FOG LIGHT (ONE) LEFT OR RIGHT - R.R.

- Connect the negative battery terminal.

Op. 5530B56 BATTERY DRIP TRAY COVER - R.R.

- Remove the vehicle from the lift.
