Turbo charger assembly

Description 1064A

1.3 JTD 16v

BORG WARNER TURBOCHARGER

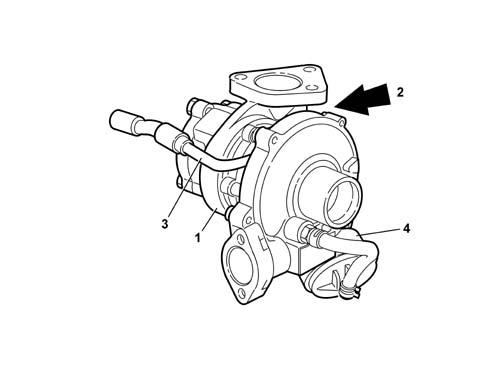

The turbocharger (1) is connected to the exhaust manifold its purpose is to increase the volumetric output of the engine.

It basically consists of two impellers fitted on the same shaft, which rotates on two floating bearings which are lubricated by means of a branch (3) off the engine lubrication system.

1 - Turbocharger

2 - Waste gate

3 - Lubrication circuit branch

4 - Pneumatic actuator

BORG WARNER TURBOCHARGER

The oil used disperses some of the large amount of heat which is given off by the exhaust gases at the turbine. There is a waste-gate valve (2) fitted on the turbocharger, controlled by a pneumatic actuator (5), which allows the passage of exhaust gases to the turbine to be choked depending on the pressure reached at the compressor outlet.
