Introduction - ENGINE COOLING

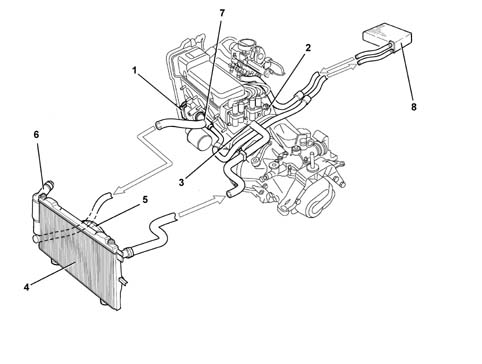

1.1, 1.2 8v

1, Water pump

2, Engine coolant temperature sensor

3, Thermostat

4, Radiator

5, Electric fan

6, Reservoir

7, Water pump rigid inlet pipe

8, Heater unit

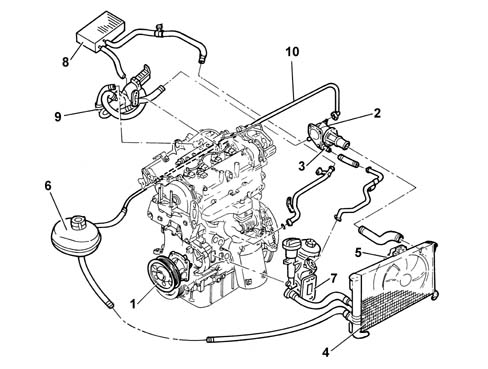

1.3 JTD 16v

COOLING SYSTEM

1 - Water pump

2 - Engine coolant temperature sensor Characteristic of working principle 1060G pressure pump electric control

3 - Thermostat

4 - Radiator

5 - Electric fan

6 - Reservoir

7 - Engine oil heat exchanger

8 - Vehicle interior heating radiator

9 - E.G.R. exhaust gas heat exchanger Characteristic of working principle 1080C exhaust gas recirculation system (e.g.r.)

10 - Water recirculation pipe
