Check on operation of timing sensor

Make

Fiat

Model

Panda Factory Service Manual

Year

2003–2012

Section

Diesel fuel injection › Check on operation of timing sensor

EngineCheck on operation of timing sensor

Check on operation of timing sensor

Check 1060GC

1.3 JTD 16v

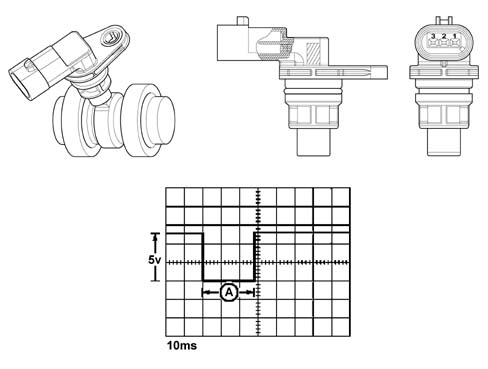

Check that the sensor output signal is similar to the one illustrated in the enclosed graph.

Pin 1, description: earth, signal type: earth.

Pin 2, description: timing signal, signal type: frequency output.

Pin 3, description: supply, signal type: 12 V input.

08 Engine
