Check on operation of air flow meter

Check 1060GB

1.3 JTD 16v

Check that the air flow meter technical specifications correspond to the data given below:

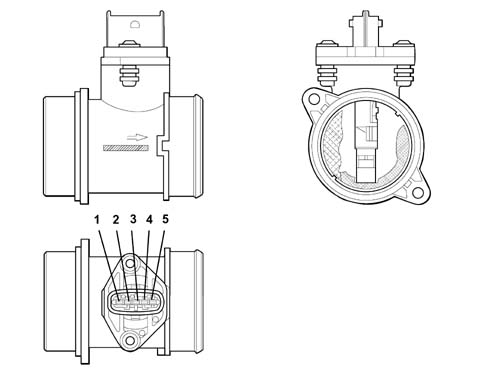

Flow meter sensitive element principle diagram

typical curves [Air flow - Output voltage] and [Temperature - Resistance]

Pin 1, description: temperature sensor, signal type: analogue output.

Pin 2, description: supply, signal type: 12V supply.

Pin 3, description: earth, signal type: earth

Pin 4, description, reference voltage, signal type: 5V.

Pin 5, description: sensor output, signal type: analogue output.
