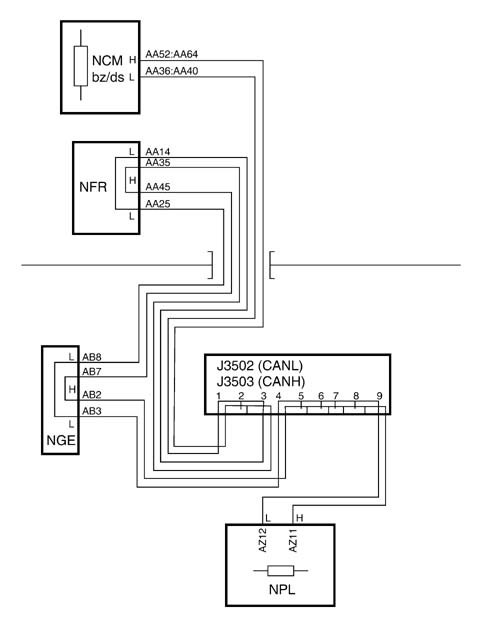

C CAN LINE CHECK

Check 5505OA

A green coloured cable is associated with the C CAN H network whilst a brown coloured cable is associated with the C CAN L network.

• Detach the ABS control unit connector and check that the control unit side circuit resistance is infinite (CA)
• Check that the reading is 120 Ohm when measuring on the wiring side (towards the engine and towards the Body Computer).
