Ignition switch

Description 5520A

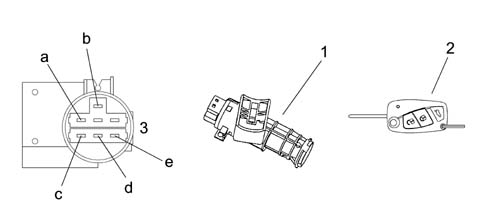

The diagram below illustrates the ignition switch.

1 - Ignition switch

2 - Ignition key

3 - Electrical connector

a - INT

b - INT/A

c - 15/54

d - 30

e - 50

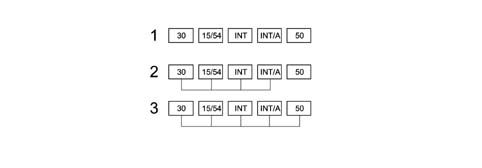

The diagram illustrates the connections.

1- STOP: key can be removed

2 - DRIVE: key cannot be removed

3 - STARTING: key cannot be removed automatic return to 'DRIVE position

The ignition key with a steering lock is a component which carries out the main function, through the insertion of a coded mechanical key, of supplying several circuits including the ignition/injection system, the engine starting and the services controlled by the ignition.

The steering lock function is included amongst its tasks.

The ignition key should be equipped with an 'anti-repeater' device which prevents the starting manoueuvre if the key is not returned to the STOP position.

The steering lock has two safety devices so that if one of them is broken and the ignition key is in the ON position the steering column cannot be mechanically locked.

If the parking lights button is pressed it is possible to move from STOP to PARK and it is automatically released by turning the key to the STOP position.

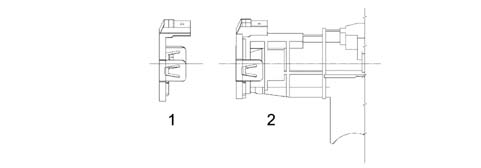

1 - Fiat CODE aerial

2 - Aerial fitted on the switch

The ignition switch is also used as a support for the aerial needed in transferring the codes in the ignition key transponder and is used by the FIAT CODE system for releasing the injection control unit (NCM) and allowing the engine to be started up.
