CD-CHANGER POWER SUPPLY CHECK

Check 5570TG

SUPPLY CHECK

- Switch on the Examiner and enter the "VOLTMETER" ambient.

- Switch on the Connect radio.

- Connect the red probe of the voltmeter to pin 15 of the CD-Changer 20-way connector and the black probe to pin 17 (earth) and check that there is a direct voltage of 12 V.

CD-CHANGER ON CONTROL CHECK

- With the ignition on and the Connect switched on, also check that there is a 12 V activation signal at pin 16 of the CD-Changer 20-way connector C.

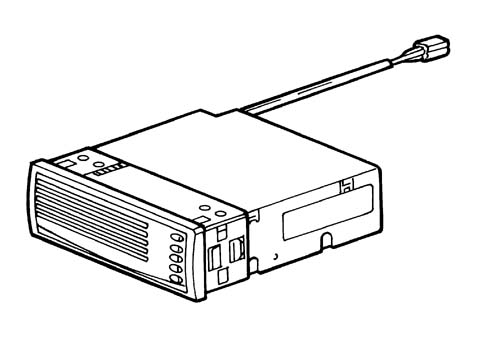

CD Changer

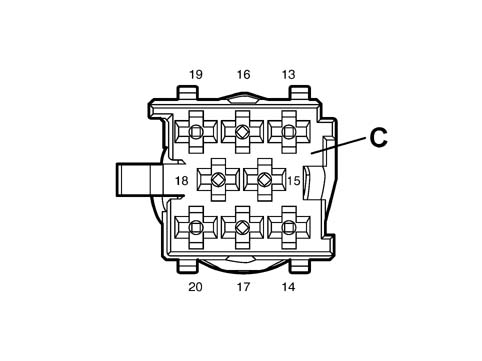

CD Changer pin out

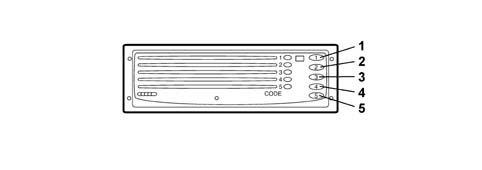

- Check the selection of the disc by pressing one of the CD selection buttons (from 1 to 5) briefly.

- Check that the disc is ejected by pressing one of the CD selection buttons (from 1 to 5) briefly.
