AUDIO CONTROLS ON STEERING WHEEL CHECK

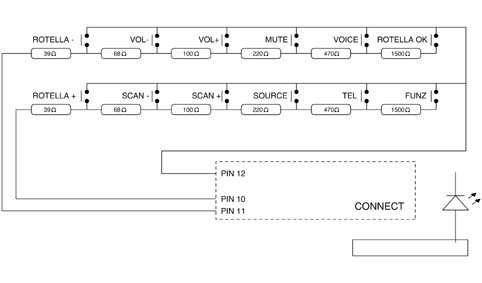

Disconnect the 1 -20 way Connect connector, identify the pins for the inputs at the wiring for the radio controls on the steering wheel and check the resistance values using the table enclosed:
| Button | Pin | Resistance |
| Vol - | 11 - 12 | 107 Ohm |
| Vol + | 11 - 12 | 207 Ohm |
| Scan - | 10 - 12 | 107 Ohm |
| Scan + | 10 - 12 | 207 Ohm |
| Source | 10 - 12 | 427 Ohm |
| Mute | 11 - 12 | 427 Ohm |

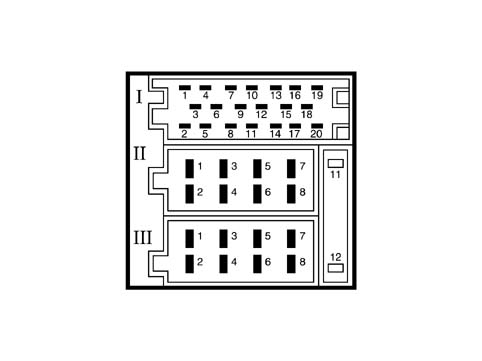

Connect pin out
